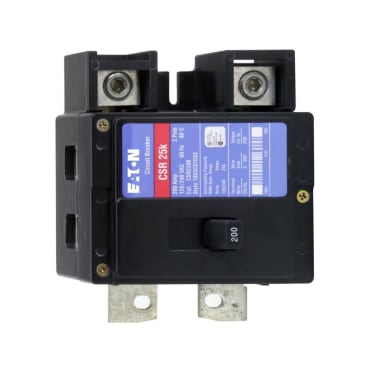

EATON CSR2200N Image 1

EATON CSR2200N 200A 2-POLE CSR MAIN BREAKER

MFR Part #: CSR2200N
SKU #: 1310931
Brand: EATON
UPC: 782113098463
EATON CSR2200N Type CSR Standard Main Circuit Breaker, 120/240 V AC, 200 A, 25 kA Interrupt, 2 Poles
Conventional Energy Generation, Renewable Energy and Alternative Energy Generation, Marine Vessels and Equipment, Type ECC Unit Enclosures and Circuit Protection Applications
UL 489

EATON Main Circuit Breaker, Type CSR Standard, 120/240 V AC, 200 A, 25 kA Interrupt, 2 Pole, 1 ph, 2 AWG to 300 kcmil Wire, Surface Mount, 60 to 75 deg C, 5.3 in L x 4.2 in W x 3.52 in H

Eaton's main circuit breakers are used in a variety of applications including the main or emergency disconnect on the outside of a house, a tenant main breaker in group metering stacks and feed-through lug blocks specifically designed for sub-feeding from an existing panel. Main breakers are available with a variety of accessories including shunt trip, bell alarms and auxiliary switches.

Product Details

EATON Main Circuit Breaker, Type CSR Standard, 120/240 V AC, 200 A, 25 kA Interrupt, 2 Pole, 1 ph, 2 AWG to 300 kcmil Wire, Surface Mount, 60 to 75 deg C, 5.3 in L x 4.2 in W x 3.52 in H

Eaton's main circuit breakers are used in a variety of applications including the main or emergency disconnect on the outside of a house, a tenant main breaker in group metering stacks and feed-through lug blocks specifically designed for sub-feeding from an existing panel. Main breakers are available with a variety of accessories including shunt trip, bell alarms and auxiliary switches.

Features

  • Time savings up to 25% per AFCI/GFCI installation
  • Eliminates nuisance tripping due to loose pigtail connections
  • Clean gutter space
  • Easier troubleshooting due to less wiring
