RAB 095800 WP PNTD BLK OCT BX THD CND ENT 1/2DVXJ/C-B
MFR Part #: 1/2DVXJ/C-B
SKU #: 1134920
Brand: RAB® Design Lighting
UPC: 61184958006

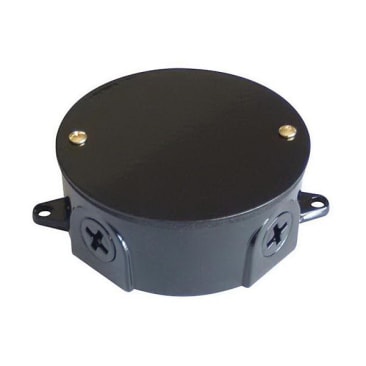

RAB® 1/2DVXJ/C-B Weatherproof Box With Cover, Aluminum, 1-9/16 in D
(4) Plugs, Ground Mounting Screw and Cover
For industrial or commercial applications
cULus Listed
Product Details
Attributes
Features
Resources
RAB® Weatherproof Box, 1/2 in Hub, 4 in Dia, Round, Through Hole Mount, Aluminum, Sand Blasted Aluminum, Black, 1-9/16 in D
Color:Black
Diameter:4 in
Hub Size:1/2 in
Material:Aluminum
Mounting Type:Through Hole
Shape:Round
- The DVXJC box is with 1/2 in threaded conduit entries
- Comes complete with four plugs, ground mounting screw, and cover installed
- Precision die cast aluminum, 4 in diameter box comes with two opposing mounting feet
- There are 4 internal posts for mounting covers 90 deg apart
- Two additional posts at 180 deg apart for universal cross bars
- One post for ground wire screw plus all posts are 10-24 tapped
- Five conduit entries, four on the side and one on the bottom
- Unit comes complete with neoprene gasket, 4 threaded plugs to match side entries, stamped aluminum cover with brass screws and one ground screw installed
- Threaded conduit entries
- 0.3 in Dia mounting hole
Product Details
RAB® Weatherproof Box, 1/2 in Hub, 4 in Dia, Round, Through Hole Mount, Aluminum, Sand Blasted Aluminum, Black, 1-9/16 in D
Attributes
Color: Black
Diameter: 4 in
Hub Size: 1/2 in
Material: Aluminum
Mounting Type: Through Hole
Shape: Round
Features
- The DVXJC box is with 1/2 in threaded conduit entries
- Comes complete with four plugs, ground mounting screw, and cover installed
- Precision die cast aluminum, 4 in diameter box comes with two opposing mounting feet
- There are 4 internal posts for mounting covers 90 deg apart
- Two additional posts at 180 deg apart for universal cross bars
- One post for ground wire screw plus all posts are 10-24 tapped
- Five conduit entries, four on the side and one on the bottom
- Unit comes complete with neoprene gasket, 4 threaded plugs to match side entries, stamped aluminum cover with brass screws and one ground screw installed
- Threaded conduit entries
- 0.3 in Dia mounting hole
