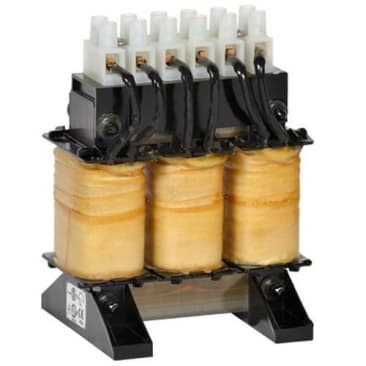

HAMMOND PWR CRX0024AC 208VAC 7.5HP 24A LINE REACTOR
Product Details
Attributes
Features
Resources
HPS, CRX0024AC, Line Reactor, Core and Coil, Series: Centurion® R, 208 V AC, 24 A, 7-1/2 hp, 3 ph, 0.41 mH Inductance, 3 % Impedance, 5.38 in Height, 4.13 in Width, 3.51 in Depth, Floor/Panel Mounting, Iron
The new HPS Centurion® R reactor provides a unique blend of improved performance and reliability while reducing the product footprint. HPS Centurion® R reactors deliver protection for your motors and AC drives, while minimizing power system harmonics. They are available in standard ratings from 1/2 hp (373 W) to 1200 hp (895 kW), upto 600 VAC (690 VAC with de-rating) and are fully compliant with UL, CSA, CE, IEC and NEMA standards. The efficient and cost effective HPS Centurion® R reactors are built to satisfy the power quality needs of demanding AC drive applications.
- The impedance of the reactors is accurately controlled by maintaining the core gaps in the flux path
- In some HP ranges, bobbins are used to provide exceptional mechanical strength and increase the product reliability
- Every reactor is vacuum pressure impregnated (VPI) with VT (vinyl-toluene) polyester resin to minimize audible noise
- Rugged steel enclosures with UL 50 ANSI 61 gray paint
- Finger proof terminal blocks are provided on rated currents of approximately below 65 A termination
- Terminal pads are supplied on approximately 65 A and above, terminal pads are brazed to ensure electrical integrity
- Mitigate nuisance tripping
- Extend the life of switching components and motors
- Reduce audible motor noise and motor operating temperature
- Mitigate the effect of long lead length
- Minimize harmonic distortion
- Reduce line notching
- Innovative design showcases a unique blend of performance and economy to protect your VFD, motor, capacitors and electrical system from harmonics, damage and nuisance tripping
- Noise level between 58 to 75 dBA
