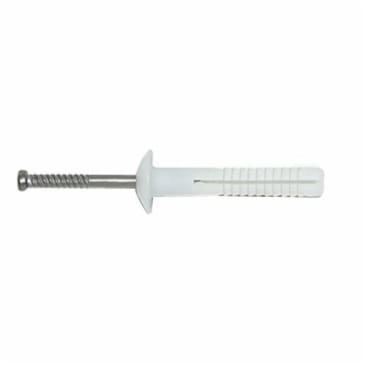

DEWALT 2842 Image 1

DEWALT 02842-PWR ZAMAC HS 1/4 X 1 1/4

MFR Part #: 2842
SKU #: 1181900
Brand: DeWALT®
UPC: 075352128429
DeWALT® 2842 Hammer-Screw™ Nail Anchor, 1/4 in Dia, 1-1/4 in OAL, Zamac Alloy Body Shell, Carbon Steel Pin, Mushroom Head Head
(100) 1/4 x 1-1/4 in Powers Zamac Hammer-Screw Mushroom Head with NO 2 Phillips Type Screw 2839
For electrical fixtures, signage, drywall track, maintenance, surveillance equipment, brick ties and masonry anchorage

DeWALT® Nail Anchor, Series: Hammer-Screw™, 1/4 in Dia, 1-1/4 in Overall Length, Zamac Alloy Body Shell, Carbon Steel Pin, Mushroom Head, 1/4 in Drill, 1-1/8 in Minimum Embedment Depth, 1365 lb at 2000 psi Shear Strength, 1220 lb at 2000 psi Tensile, Zinc Plated/Perma Seal Fluoropolymer

The Zamac Hammer-Screw® is a unique, one-step drive anchor featuring a phillips type head and a screw thread for use in concrete, block, brick or stone. With a body formed from corrosion resistant Zamac alloy and a carbon or stainless steel drive screw, this anchor has been developed by powers as an improvement over standard nailing anchors.

Product Details

DeWALT® Nail Anchor, Series: Hammer-Screw™, 1/4 in Dia, 1-1/4 in Overall Length, Zamac Alloy Body Shell, Carbon Steel Pin, Mushroom Head, 1/4 in Drill, 1-1/8 in Minimum Embedment Depth, 1365 lb at 2000 psi Shear Strength, 1220 lb at 2000 psi Tensile, Zinc Plated/Perma Seal Fluoropolymer

The Zamac Hammer-Screw® is a unique, one-step drive anchor featuring a phillips type head and a screw thread for use in concrete, block, brick or stone. With a body formed from corrosion resistant Zamac alloy and a carbon or stainless steel drive screw, this anchor has been developed by powers as an improvement over standard nailing anchors.

Attributes

Country Of Origin: US
Diameter: 1/4 in
Drill Size: 1/4 in
Finish: Zinc Plated/Perma Seal Fluoropolymer
Head Type: Mushroom Head
Minimum Embedment Depth: 1-1/8 in
Overall Length: 1-1/4 in
Series: Hammer-Screw™
Shear Strength: 1365 lb at 2000 psi
Tensile Strength: 1220 lb at 2000 psi
Body Shell Material: Zamac Alloy
Pin Material: Carbon Steel

Features

  • General purpose anchoring
  • Installs in a variety of base materials
  • Removable anchor when screw is backed out with a phillips head driver
  • AISI 1018 carbon steel screw
  • ASTM B633, SC1, type III (Fe/Zn5) zinc screw plating
  • Normal weight concrete, hollow concrete masonry, brick masonry, stone are applicable materials
  • 1470 lb at 4000 psi and 6000 psi shear strength for Concrete
  • 1350 lb at 4000 psi, 1450 lb tensile strength at 6000 psi for normal weight concrete
