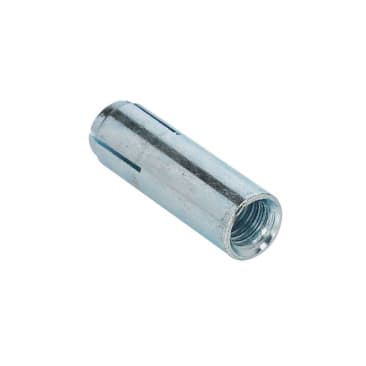

B-LINE ADI-37 Image 1

B-LINE ADI-37 DROP-IN ANCHOR 3/8IN ZINC PLT

MFR Part #: ADI-37
SKU #: 1118813
Brand: B-Line
UPC: 78101103219
B-Line ADI-37 Smooth Wall Drop-In Anchor, 3/8 in, Steel, 1/2 in Drill, 1-9/16 in D Min Embedment
Setting Tool
For overhead applications such as suspending cable tray, strut, pipe supports and lighting, anchors, drop-in-anchor and smooth wall
FM Approved | UL Listed

B-Line Drop-In Anchor, Smooth Wall, 3/8 in Bolt/Rod, 3/8-16, Steel, 1/2 in Drill, 1-9/16 in Minimum Embedment Depth, 5/8 in Thread Length, UNC, 1-9/16 in Overall Length, 1145 lb Shear Strength, 1045 lb Tensile, Zinc Plated

Eaton offers a full line of B-Line series fastener hardware and accessories, such as metal stud grommets, machine screws, machine square nuts, sheet metal screws, self-drilling sheet metal screws, pipe sleeve fasteners, accessory nuts, reference wire fasteners and more.

Product Details

B-Line Drop-In Anchor, Smooth Wall, 3/8 in Bolt/Rod, 3/8-16, Steel, 1/2 in Drill, 1-9/16 in Minimum Embedment Depth, 5/8 in Thread Length, UNC, 1-9/16 in Overall Length, 1145 lb Shear Strength, 1045 lb Tensile, Zinc Plated

Eaton offers a full line of B-Line series fastener hardware and accessories, such as metal stud grommets, machine screws, machine square nuts, sheet metal screws, self-drilling sheet metal screws, pipe sleeve fasteners, accessory nuts, reference wire fasteners and more.

Attributes

Bolt/Rod Size: 3/8 in
Country Of Origin: China
Drill Size: 1/2 in
Material: Steel
Shear Strength: 1145 lb
Tensile Strength: 1045 lb
Finish: Zinc Plated
Minimum Embedment Depth: 1-9/16 in
Overall Length: 1-9/16 in
Thread Length: 5/8 in
Thread Size: 3/8-16
Thread Type: UNC
Type: Smooth Wall

Features

  • Designed for use in solid concrete
  • Flanged (lipped) version installs flush for easy inspection and standardizes rod heights
  • Smooth wall drop-in can be installed flush mounted or below the base material surface
  • 1145 lb at 4000 psi shear strength
  • 1045 lb at 4000 psi tensile strength

Resources

Specification Sheet
