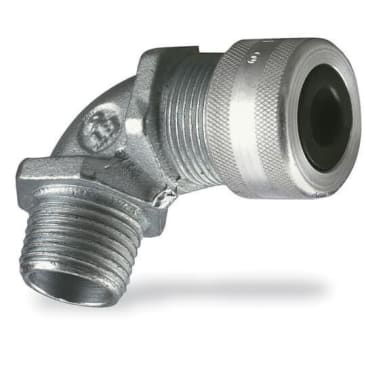

ABB 4972AL Image 1
COO Canada

ABB 4972AL 3/4 90DEG ALUM STRAIN RELEIF CONNECTOR .500-.750

MFR Part #: 4972AL
SKU #: 1263478
Brand: ABB
UPC: 786210797632
T&B® Ranger® 4972AL Liquidtight Strain Relief Cord Connector, 3/4 in Trade, 1/2 to 3/4 in Cable Openings, Aluminum
For passing a cord cable into an enclosure through a bulkhead and ordinary, wet or dry locations
ANSI C33.84 | ANSI NFPA 70-1978 | CSA C22.2 File No. 18 | CSA File No. LR589/LR4484/52391 | UL 514 File No. E13938

T&B® Ranger® Cord Connector, Liquidtight Strain Relief, 3/4 in, Cable Openings: 1/2 to 3/4 in, S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD Cable, Thread, 90 deg, Aluminum, Metallic, -20 to 105 deg C

The Ranger® series steel liquidtight connector takes twice the cable range of most ordinary strain relief connectors. T&B® ranger connectors enable you to reduce your inventory and save time with one connector that can do the work of two.

Product Details

T&B® Ranger® Cord Connector, Liquidtight Strain Relief, 3/4 in, Cable Openings: 1/2 to 3/4 in, S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD Cable, Thread, 90 deg, Aluminum, Metallic, -20 to 105 deg C

The Ranger® series steel liquidtight connector takes twice the cable range of most ordinary strain relief connectors. T&B® ranger connectors enable you to reduce your inventory and save time with one connector that can do the work of two.

Attributes

Country Of Origin: Canada
Angle: 90 deg
Cable Openings: 1/2 to 3/4 in
Cable Type: S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD
Color: Metallic
Connection Type: Thread
Material: Aluminum
Temperature Rating: -20 to 105 deg C
Trade Size: 3/4 in
Type: Liquidtight Strain Relief

Features

  • Extended range with superior strain relief
  • Reduced overall size, fits into tighter spaces
  • Gland nut designed to restrict cable bending
  • Form a mechanical grip and water and/or oil resistant seal for cord
  • Form a non-slip connection or termination for flexible cord
  • Aluminum glandnut, grip and rubber bushing
  • 11/16 in L thread
  • 25/32 in Dia throat

Resources

Specification Sheet
