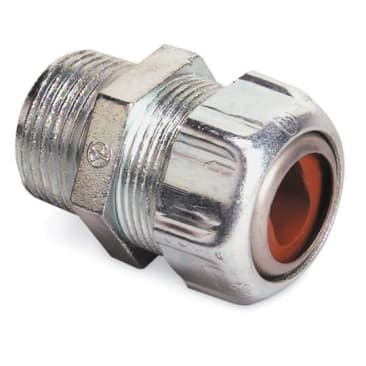

ABB 2446 1-1/4 OVAL CABLE W/P CONNECTOR
Product Details
Attributes
Features
Resources
T&B® Watertight Cable Connector, 1-1/4 in, Cable Openings: 0.565 x 0.965 in to 0.75 x 1.15 in, Oval Cable, Thread, Die Cast Zinc, Zinc Plated, Metallic, 2-1/16 in L x 1-15/16 in W
For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.
- Design with two tapers inside the body-a slow one and a fast one-permits the stocking of fewer connectors for varied cable sizes and allows maximum take-up
- Neoprene bushing, resists oil and water, grips cable the full length of the bushing providing adequate strain relief without damaging outer jacket
- Hex gland and body take the same wrench opening and a stainless steel slip ring prevents cable from twisting as gland ring is being tightened
- Threads on the body are tapered for water sealing
- Stainless steel retaining ring protects cable jacket against abrasion, reduces installing torque effort
- Rugged ribbed steel gland construction
- 2-1/8 in max body corners
- 5/8 in L thread
- 2-1/16 in max gland corners
- A design with two tapers inside the body, a slow one and a fast one permits the stocking of fewer connectors for varied cable sizes and allows maximum take up
