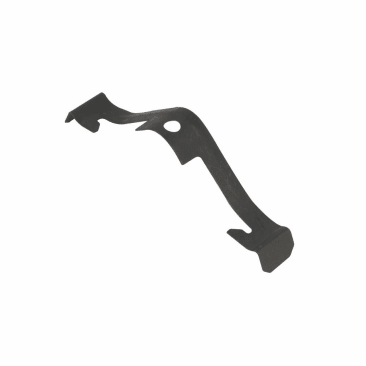

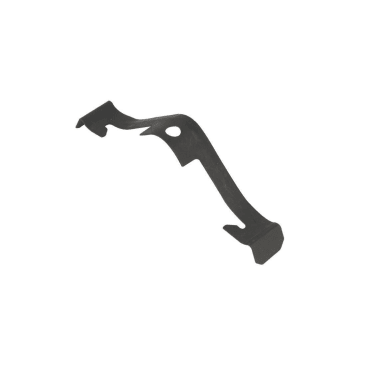

B-LINE BW-16 Image 1
B-LINE BW-16 Image 2
B-LINE BW-16 Image 3
content loaded
B-LINE BW-16 Image 1

B-LINE BW-16 ROD & WIRE FASTENER

MFR Part #: BW-16
SKU #: 1118879
Brand: B-Line
UPC: 78101119720
B-Line BW-16 Rod Wire Fastener, 1/8 to 1/2 in THK, 25/50/100 lb Load, Cold Rolled High Carbon Steel
30 Days
UL Listed

B-Line Rod Wire Fastener, 1/8 to 1/2 in Flange Thickness, 25/50/100 lb Load, For Use With: Flexible Metallic Tubing or Armored Cable, Specifications: 9 to 8 AWG Wire, 3/16 to 1/4 in Rod, 3/4 in Rigid Conduit, 1 in EMT Cable, Cold Rolled High Carbon Steel

B-Line is a leading manufacturer and fabricator of metal products used in the support of Pipe Hangers and Support Equipment for industrial, commercial, utility and HVACR applications. B-Line Pipe Hangers and Supports includes a wide variety of support products such as beam clamps, pipe hangers, pipe clamps, pipe rollers, pipe supports, concrete inserts and brackets.

Product Details

B-Line Rod Wire Fastener, 1/8 to 1/2 in Flange Thickness, 25/50/100 lb Load, For Use With: Flexible Metallic Tubing or Armored Cable, Specifications: 9 to 8 AWG Wire, 3/16 to 1/4 in Rod, 3/4 in Rigid Conduit, 1 in EMT Cable, Cold Rolled High Carbon Steel

B-Line is a leading manufacturer and fabricator of metal products used in the support of Pipe Hangers and Support Equipment for industrial, commercial, utility and HVACR applications. B-Line Pipe Hangers and Supports includes a wide variety of support products such as beam clamps, pipe hangers, pipe clamps, pipe rollers, pipe supports, concrete inserts and brackets.

Attributes

Country Of Origin: US
Material: Cold Rolled High Carbon Steel

Features

  • Attaches conduit to wire rods or flanges
  • Clip on installation
  • Can be used for flexible metallic tubing, armored cable, portable cable, control cable, and communication cable

Resources

Specification Sheet
