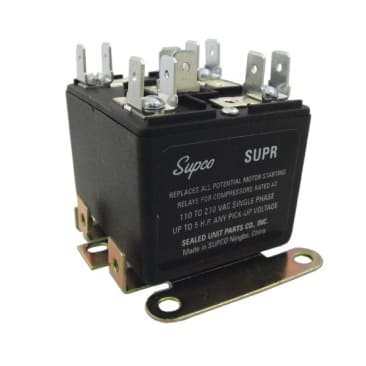

SUPCO SUPR Image 1

SUPCO SUPR UNIVERSAL POTENTIAL RELAY

MFR Part #: SUPR
SKU #: 1291389
Brand: Supco®
UPC: 400051888914
Supco® SUPR Non-Positional Universal Potential Relay, 30 A, NC Contact, For Use With HV ACR Compressors and Motors
UL Listed|PROP65: This product can expose you to chemicals including cadmium and cadmium compounds, which is known to the State of California to cause Cancer and Reproductive Harm. For more information, go to www.P65Warnings.ca.gov.

Supco® Universal Potential Relay, Non-Positional, 110/270 V AC, 30 A, up to 5 hp, NC, 30 A Contact, Screw/Push-on Terminal, For Use with: HV ACR Compressors and Motors, 2-1/4 in L x 1-3/4 in W x 1-1/2 in H

Product Details

Supco® Universal Potential Relay, Non-Positional, 110/270 V AC, 30 A, up to 5 hp, NC, 30 A Contact, Screw/Push-on Terminal, For Use with: HV ACR Compressors and Motors, 2-1/4 in L x 1-3/4 in W x 1-1/2 in H

Attributes

Amperage Rating: 30 A
Suitable For Use With: HV ACR Compressors and Motors
Type: Non-Positional
Voltage Rating: 110/270 V AC
Contact Form: NC
Contact Rating: 30 A
Dimensions: 2-1/4 in L x 1-3/4 in W x 1-1/2 in H
Power Rating: up to 5 hp
Terminal Type: Screw/Push-on

Features

  • Universal potential relay wire to wire replacement 30 A contacts
  • Electronic potential relay (EPR) technology
  • Start winding protection if motor does not start
  • Time function relay
  • Instant restart
  • Safety time out 1 to 1.5 s
