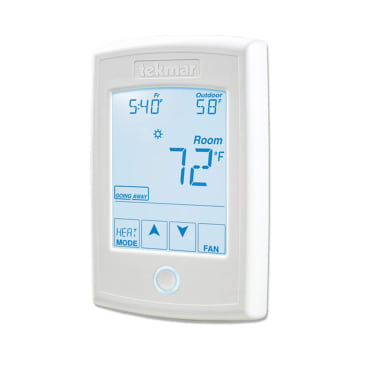

TEKMAR 554 Image 1
COO Canada

TEKMAR 554 TSAT (1HOT/1COOL/1FAN)

MFR Part #:Ā 554
SKU #:Ā 1261023
Brand:Ā WATTSĀ® | TekmarĀ®
UPC:Ā 779655055401
TekmarĀ® 554 Thermostat, Import
3 years Limited
Indoor Applications
Meets Class B: ICES and FCC Part 15

TekmarĀ® Thermostat, NTC Thermistor Sensor, 3 Stage, 24 V, Touchscreen Display, NEMA 1 Enclosure, White, 3-1/4 in W x 15/16 in D x 5 in H, Import

The tekmarNetĀ® Thermostat 554 is a communicating touchscreen thermostat designed to operate one heating stage, one cooling stage, and a fan. The heating stage can be either hydronic or forced air and the cooling stage can operate an air conditioner. There are two auxiliary sensor inputs available to measure room, floor, outdoor, coil or duct temperature. The optional floor sensor allows precise heating of radiant floors by controlling the floor temperature and maintaining the desired room air temperature. The large touchscreen allows you to easily adjust 7-day programmable schedules and room temperature to optimize comfort and energy savings. The 554 can connect to tekmarNet controls using two or four wires or it can operate as a stand-alone thermostat using three wires.

Product Details

TekmarĀ® Thermostat, NTC Thermistor Sensor, 3 Stage, 24 V, Touchscreen Display, NEMA 1 Enclosure, White, 3-1/4 in W x 15/16 in D x 5 in H, Import

The tekmarNetĀ® Thermostat 554 is a communicating touchscreen thermostat designed to operate one heating stage, one cooling stage, and a fan. The heating stage can be either hydronic or forced air and the cooling stage can operate an air conditioner. There are two auxiliary sensor inputs available to measure room, floor, outdoor, coil or duct temperature. The optional floor sensor allows precise heating of radiant floors by controlling the floor temperature and maintaining the desired room air temperature. The large touchscreen allows you to easily adjust 7-day programmable schedules and room temperature to optimize comfort and energy savings. The 554 can connect to tekmarNet controls using two or four wires or it can operate as a stand-alone thermostat using three wires.

Attributes

Color:Ā White
Country Of Origin:Ā Canada
Dimensions:Ā 3-1/4 in W x 15/16 in D x 5 in H
Display Type:Ā Touchscreen
Domestic/Import:Ā Import
Enclosure Type:Ā NEMA 1
Number of Stages:Ā 3
Sensor Type:Ā NTC Thermistor
Voltage Rating:Ā 24 V

Features

  • 2 auxiliary sensor inputs
  • Air group master
  • Away scene key
  • Network schedule master or member
  • Optimum start
  • Programmable schedule
  • Radiant floor heating
  • Room temperature limiting
  • Temporary hold
  • Zone synchronization
  • tekmarNetĀ® communication compatible
  • 1-stage heat, 1-stage cool and 1-stage fan
