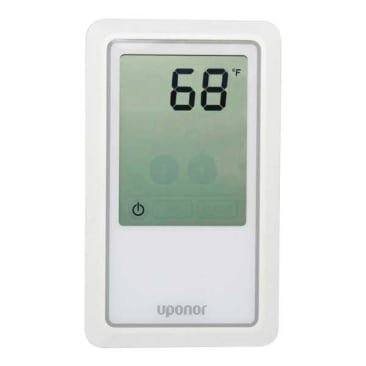

WIRSBO A3100101 HEAT-ONLY THERMOSTAT W/TOUCHSCREEN
Product Details
Attributes
Features
Resources
Uponor Heat-Only Thermostat, 24 VDC, 3-1/4 in W x 3/4 in D x 5-3/8 in H, Domestic
Heat-only thermostats with touchscreen are designed specifically for radiant floor heating. They use fully automatic differential and pulse width modulation (PWM) to ensure each zone or area is comfortable and energy efficient. The touchscreen provides a simple, intuitive display with large, easy-to-read numbers. The thermostat can control room temperature through operative temperature sensing, an optional floor sensor or a combination of both. The floor sensor can be used to maintain warm floors throughout the heating season as well as provide temperature limit protection. The thermostat is designed to operate using two wires, making it simple to install and service.
- Operative temperature sensing
- Two-wire power sharing (easier installation)
- User-friendly touchscreen
- Color-enhanced display
- Slim, aesthetic design
- Microprocessor control
- 32 to 104 deg F ambient, < 20-90% RH non-condensing, indoor use only
- 24 V +/- 10%, 60 hz, 1 VA operating voltage
- Maximum load: 1.3 A at 24 VAC
- Floor sensor: 10K, J-curve thermistor
Product Details
Uponor Heat-Only Thermostat, 24 VDC, 3-1/4 in W x 3/4 in D x 5-3/8 in H, Domestic
Heat-only thermostats with touchscreen are designed specifically for radiant floor heating. They use fully automatic differential and pulse width modulation (PWM) to ensure each zone or area is comfortable and energy efficient. The touchscreen provides a simple, intuitive display with large, easy-to-read numbers. The thermostat can control room temperature through operative temperature sensing, an optional floor sensor or a combination of both. The floor sensor can be used to maintain warm floors throughout the heating season as well as provide temperature limit protection. The thermostat is designed to operate using two wires, making it simple to install and service.
Attributes
Features
- Operative temperature sensing
- Two-wire power sharing (easier installation)
- User-friendly touchscreen
- Color-enhanced display
- Slim, aesthetic design
- Microprocessor control
- 32 to 104 deg F ambient, < 20-90% RH non-condensing, indoor use only
- 24 V +/- 10%, 60 hz, 1 VA operating voltage
- Maximum load: 1.3 A at 24 VAC
- Floor sensor: 10K, J-curve thermistor
