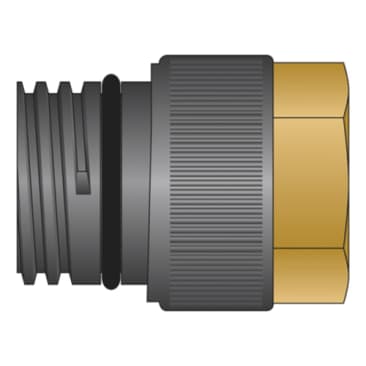

HEATLINK 22191 AQUALINK 3/4 FIP SUPPLY END CONNECTION
MFR Part #: 22191
SKU #: 1007351
Brand: HeatLink®
UPC: 400001878439
Please note this item is discontinued (order fulfillment will depend on stock availability): HeatLink® 22191 Connector, 3/4 in FNPT
Product Details
Attributes
Features
Resources
HeatLink® Connector, Connector Fitting, 3/4 in Connection Size 1, Connection Type 1: FNPT, FNPT Connection
Clearance Items:
Clearance
Connection Type:
FNPT
Connection Size 1:
3/4 in
Connection Type 1:
FNPT
Fitting Type:
Connector
- Use silicone lubricant (#79951 or #79952) to lubricate dry O-rings to ensure a tight seal
- In case a leak develops during testing, remove pressure from system, clean the O-ring and reapply silicone lube
- When placing the manifold into the supporting bracket, place the bottom snap-in lock in the bottom (braced) notch in bracket and then rotate it so that the top snaps into place
- In order to prevent stress on the manifold supply end connections, the supply piping must be braced or supported, parallel to the manifold and centered with the manifold's inlets
- Do not use EasyFit™ manifolds and accessories for purposes other than those for which they were designed, do not exceed their specifications
- Failure to follow these guidelines or the products instructions will void the warranty
- Consult with your EasyFit™ dealer or distributor if you have any questions regarding the operations and limits of HeatLink® products
- Review all instructions and warranty information carefully
Product Details
HeatLink® Connector, Connector Fitting, 3/4 in Connection Size 1, Connection Type 1: FNPT, FNPT Connection
Attributes
Clearance Items: Clearance
Connection Type: FNPT
Connection Size 1: 3/4 in
Connection Type 1: FNPT
Fitting Type: Connector
Features
- Use silicone lubricant (#79951 or #79952) to lubricate dry O-rings to ensure a tight seal
- In case a leak develops during testing, remove pressure from system, clean the O-ring and reapply silicone lube
- When placing the manifold into the supporting bracket, place the bottom snap-in lock in the bottom (braced) notch in bracket and then rotate it so that the top snaps into place
- In order to prevent stress on the manifold supply end connections, the supply piping must be braced or supported, parallel to the manifold and centered with the manifold's inlets
- Do not use EasyFit™ manifolds and accessories for purposes other than those for which they were designed, do not exceed their specifications
- Failure to follow these guidelines or the products instructions will void the warranty
- Consult with your EasyFit™ dealer or distributor if you have any questions regarding the operations and limits of HeatLink® products
- Review all instructions and warranty information carefully
