CALEFFI 132662A QUICKSETTER BAL VALVE W/FLOWMETER 1NPT
MFR Part #: 132662A
SKU #: 1086542
Brand: Caleffi
UPC: 8016615299809

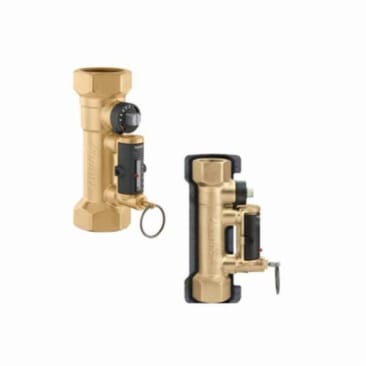

Caleffi QuickSetter™ 132662A Balancing Valve With Flow Meter, 1 in Nominal, FNPT, 150 psi, 3 to 10 gpm, Brass Body
Product Details
Attributes
Features
Resources
Caleffi QuickSetter™ Balancing Valve, Series: 132, 1 in Nominal, FNPT, 150 psi, 14 to 230 deg F, 3 to 10 gpm, Media: Fluids/Gylcol/Water, Brass Body, 6-1/4 in H
Body Material:
Brass
Dimensions:
6-1/4 in H
End Style:
FNPT
Flow Rate:
3 to 10 gpm
Media:
Fluids/Gylcol/Water
Nominal Size:
1 in
Pressure Rating:
150 psi
Series:
132
Temperature Rating:
14 to 230 deg F
- Direct reading of flow rate
- No sight gauge clouding or scaling
- Brass valve body and flow meter
- Rotatable valve for flow rate adjustment
- Graduated scale flow meter with magnetic movement flow rate indicator
- Chrome plated brass ball control stem
- PTFE ball seal seat, PSU control stem guide, EPDM seals, brass body, brass EN 12164 CW614N headwork, brass, chrome plated bypass valve stem, stainless steel springs, PSU flow meter float and indicator cover
- 50% max glycol
- +/- 10% accuracy
- 90 deg control stem angle of rotation
- 1/2 to 1-1/4 in required operating wrench
- 1/2 to 2 in FNPT threaded connections
- Closed cell expanded PE-X insulation material
- 1.9 lb/cu ft inner part density
- 3.1 lb/cu-ft outer part density
- 0.263 Btu at 32 deg F, 0.312 Btu at 104 deg F
Product Details
Caleffi QuickSetter™ Balancing Valve, Series: 132, 1 in Nominal, FNPT, 150 psi, 14 to 230 deg F, 3 to 10 gpm, Media: Fluids/Gylcol/Water, Brass Body, 6-1/4 in H
Attributes
Body Material: Brass
Dimensions: 6-1/4 in H
End Style: FNPT
Flow Rate: 3 to 10 gpm
Media: Fluids/Gylcol/Water
Nominal Size: 1 in
Pressure Rating: 150 psi
Series: 132
Temperature Rating: 14 to 230 deg F
Features
- Direct reading of flow rate
- No sight gauge clouding or scaling
- Brass valve body and flow meter
- Rotatable valve for flow rate adjustment
- Graduated scale flow meter with magnetic movement flow rate indicator
- Chrome plated brass ball control stem
- PTFE ball seal seat, PSU control stem guide, EPDM seals, brass body, brass EN 12164 CW614N headwork, brass, chrome plated bypass valve stem, stainless steel springs, PSU flow meter float and indicator cover
- 50% max glycol
- +/- 10% accuracy
- 90 deg control stem angle of rotation
- 1/2 to 1-1/4 in required operating wrench
- 1/2 to 2 in FNPT threaded connections
- Closed cell expanded PE-X insulation material
- 1.9 lb/cu ft inner part density
- 3.1 lb/cu-ft outer part density
- 0.263 Btu at 32 deg F, 0.312 Btu at 104 deg F
