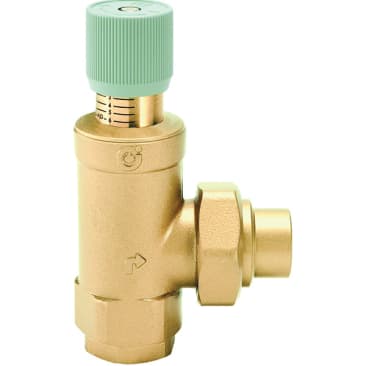

CALEFFI 519600A DIFFERENTIAL BYPASS VALVE BRASS 1IN NPT
Product Details
Attributes
Resources
Caleffi Differential Pressure Valve, Bypass, Series: 519, 1 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 32 to 230 deg F, 40 gpm Flow Rate, Media: Water/Glycol Mixture, Control Knob Actuator, Brass Body, Stainless Steel Spring Trim, EPDM O-Ring Seal Softgoods, 6-5/8 in H Dimensions
The differential pressure by-pass valve is used in systems with a fixed speed circulating pump supplying several zones controlled by two way zone valves. This valve ensures that the head pressure of the pump is proportional to the number of two way valves being closed. It will bypass the differential pressure created by the pump as the zone valves close, thus eliminating water hammer noise.
Product Details
Caleffi Differential Pressure Valve, Bypass, Series: 519, 1 in Nominal, MNPT x FNPT End Style, 150 psi Pressure, 32 to 230 deg F, 40 gpm Flow Rate, Media: Water/Glycol Mixture, Control Knob Actuator, Brass Body, Stainless Steel Spring Trim, EPDM O-Ring Seal Softgoods, 6-5/8 in H Dimensions
The differential pressure by-pass valve is used in systems with a fixed speed circulating pump supplying several zones controlled by two way zone valves. This valve ensures that the head pressure of the pump is proportional to the number of two way valves being closed. It will bypass the differential pressure created by the pump as the zone valves close, thus eliminating water hammer noise.
