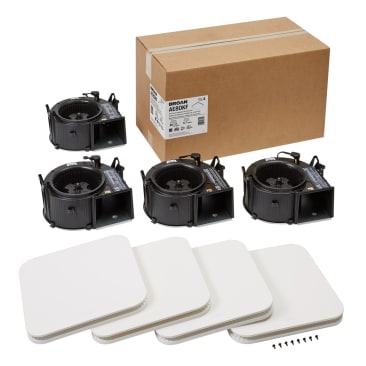

BROAN AE80KF 80CFM FINISH PACK
MFR Part #: AE80KF
SKU #: 1257178
Brand: BROAN
UPC: 26715266210
Broan® AE80KF Ventilation Fan, 80 cfm Flow Rate, 4 in Dia Duct, 24.5 W, 120 V, 0.3 A, 0.7 sones
3 Years
Hardware
For Contractors and Builders Who Have Yet to Pick Out the Final Product
UL Listed | ENERGY STAR Certified | cULus Listed | HVI Certified
Product Details
Attributes
Features
Resources
Broan®, AE80KF, Ventilation Fan, 80 cfm Flow Rate, 4 in Diameter Duct, 120 V, 0.3 A Current/Amps, 60 Hz Frequency, 24.5 W Wattage Consumption, 0.7 sones, 12.25 in Grille Length, 12.25 in Grille Width, Polymeric Grille, 10 in Housing Length, 9-1/4 in Housing Width, 5-3/4 in Housing Height, Galvanized Steel Housing Material, Ceiling Mounting, No Humidity Sensing, White
Additional Information:0.7 Sones
CFM Rating:80 cfm
Color:White
Country Of Origin:US
Coverage Area:75 sq-ft
Current/Amps:.3 A
Duct Diameter:4 in
Duct Size:4 in
Flow Rate:80 cfm
Frequency Rating:60 Hz
Grille Length:12.25 in
Grille Material:Polymeric
Grille Size:12-1/4 in H x 12-1/4 in W
Grille Width:12.25 in
Housing Finish:Galvanized
Housing Height:5-3/4 in
Housing Length:10 in
Housing Material:Galvanized Steel, Steel
Housing Width:9-1/4 in
Humidity Sensing:No
Motion Sensing:No
Motor Type:Permanently Lubricated AC
Mounting Size:.3 A
Mounting Type:Ceiling, Ceiling, Wall
Overall Height:5-3/4 in
Overall Length:9-1/4 in
Overall Width:10 in
Power Rating:24.5 W
Series:Flex™ Series
Sones:.7 sones
Switching Action:On, Off
Voltage Rating:120 V
Wattage Consumption:24.5 W
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.7 Sones for Ultra quiet performance, you might not notice it's on
- TrueSeal Damper technology reduces air leakage up to 50%
- EzDuct connector can be installed from the room side, with no attic access required
- Bright-white, CleanCover grille easily blends into the ceiling and makes cleaning easier
- Powerful enough for rooms up to 75 sq. ft.
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
Product Details
Broan®, AE80KF, Ventilation Fan, 80 cfm Flow Rate, 4 in Diameter Duct, 120 V, 0.3 A Current/Amps, 60 Hz Frequency, 24.5 W Wattage Consumption, 0.7 sones, 12.25 in Grille Length, 12.25 in Grille Width, Polymeric Grille, 10 in Housing Length, 9-1/4 in Housing Width, 5-3/4 in Housing Height, Galvanized Steel Housing Material, Ceiling Mounting, No Humidity Sensing, White
Attributes
Additional Information: 0.7 Sones
CFM Rating: 80 cfm
Color: White
Country Of Origin: US
Coverage Area: 75 sq-ft
Current/Amps: .3 A
Duct Diameter: 4 in
Duct Size: 4 in
Flow Rate: 80 cfm
Frequency Rating: 60 Hz
Grille Length: 12.25 in
Grille Material: Polymeric
Grille Size: 12-1/4 in H x 12-1/4 in W
Grille Width: 12.25 in
Housing Finish: Galvanized
Housing Height: 5-3/4 in
Housing Length: 10 in
Housing Material: Galvanized Steel, Steel
Housing Width: 9-1/4 in
Humidity Sensing: No
Motion Sensing: No
Motor Type: Permanently Lubricated AC
Mounting Size: .3 A
Mounting Type: Ceiling, Ceiling, Wall
Overall Height: 5-3/4 in
Overall Length: 9-1/4 in
Overall Width: 10 in
Power Rating: 24.5 W
Series: Flex™ Series
Sones: .7 sones
Switching Action: On, Off
Voltage Rating: 120 V
Wattage Consumption: 24.5 W
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 0.7 Sones for Ultra quiet performance, you might not notice it's on
- TrueSeal Damper technology reduces air leakage up to 50%
- EzDuct connector can be installed from the room side, with no attic access required
- Bright-white, CleanCover grille easily blends into the ceiling and makes cleaning easier
- Powerful enough for rooms up to 75 sq. ft.
- Corrosion resistant galvanized steel housing stands up to moisture
- Permanently lubricated AC motor engineered for continuous operation
