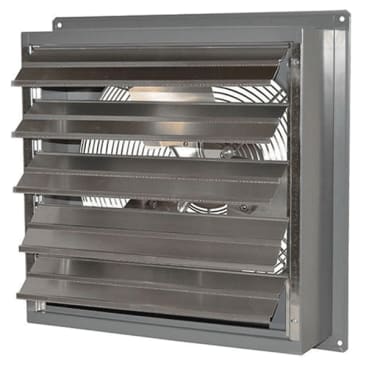

CANARM SD10 EXHAUST FAN 10IN 2-SPEED
MFR Part #: S10-B2
SKU #: 1061498
Brand: Canarm®
UPC: 400005369520
Canarm® S10-B2 Shutter Mounted Exhaust Fan, 115 V, 1.7 A Full Load, Aluminum, Steel, Powder-Coated
C/US ETL Intertek Listed
Product Details
Attributes
Features
Resources
Canarm® Shutter Mounted Exhaust Fan, 115 V, 1.7 A Full Load, 60 Hz, 1/2 hp, Aluminum, Steel, Powder-Coated, Wall Mount, 15-1/4 in Length, 11 in Width, 15-1/4 in Height, 10 in Blade, 690/580 cfm at 0 in SP, 13 x 13 in, 56 dBA at 5 ft Noise, 2 Speed, 1, 1600/1300 rpm Speed Rating
Amperage Rating:1.7 A Full Load
Blade Size:10 in
CFM Rating:690/580 cfm at 0 in SP
Finish:Powder-Coated
Frame Size:13 x 13 in
Frequency Rating:60 Hz
Height:15-1/4 in
Length:15-1/4 in
Material:Aluminum, Steel
Mounting Type:Wall
Noise Rating:56 dBA at 5 ft
Number of Speeds:2
Phase:1
Power Rating:1/2 hp
Speed Rating:1600/1300 rpm
Voltage Rating:115 V
Width:11 in
- All fans use a totally enclosed, thermally protected motor
- The rugged steel welded box housing has a durable powder-coated finish
- Aluminum louver shutters are supported by long life nylon bushings
- 8 - 24 in models have heavy wire chrome-plated OSHA guards on intake side of fan
- All fans are shipped completely assembled
- Efficient, low maintenance and easy to insta
Product Details
Canarm® Shutter Mounted Exhaust Fan, 115 V, 1.7 A Full Load, 60 Hz, 1/2 hp, Aluminum, Steel, Powder-Coated, Wall Mount, 15-1/4 in Length, 11 in Width, 15-1/4 in Height, 10 in Blade, 690/580 cfm at 0 in SP, 13 x 13 in, 56 dBA at 5 ft Noise, 2 Speed, 1, 1600/1300 rpm Speed Rating
Attributes
Amperage Rating: 1.7 A Full Load
Blade Size: 10 in
CFM Rating: 690/580 cfm at 0 in SP
Finish: Powder-Coated
Frame Size: 13 x 13 in
Frequency Rating: 60 Hz
Height: 15-1/4 in
Length: 15-1/4 in
Material: Aluminum, Steel
Mounting Type: Wall
Noise Rating: 56 dBA at 5 ft
Number of Speeds: 2
Phase: 1
Power Rating: 1/2 hp
Speed Rating: 1600/1300 rpm
Voltage Rating: 115 V
Width: 11 in
Features
- All fans use a totally enclosed, thermally protected motor
- The rugged steel welded box housing has a durable powder-coated finish
- Aluminum louver shutters are supported by long life nylon bushings
- 8 - 24 in models have heavy wire chrome-plated OSHA guards on intake side of fan
- All fans are shipped completely assembled
- Efficient, low maintenance and easy to insta
