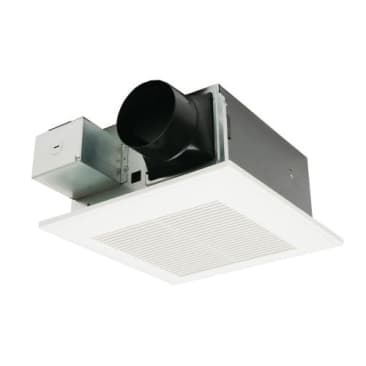

PANASONIC FV-0511VF1 Image 1

PANASONIC FV0511VF1 WHISPERFIT DC SPEED SELECTOR

MFR Part #: FV-0511VF1
SKU #: 1291645
Brand: Panasonic
UPC: 885170375468
Panasonic WhisperFit® DC FV-0511VF1 Ventilation Fan, 50/80/110 cfm, 3 or 4 in Dia Duct, 10/13.2/17.9 W, 4.6/8.8/17.1 W, 120 V, 0.29 A, 0.8/1.2 sones, Import
6 Years ECM motor/3 Years parts
For residential remodeling and hotel new construction or renovation applications
ASHRAE 62.2|California Title 24|cULus Listed|ENERGY STAR Certified|HVI 2100|LEED Certified|UL Listed

Panasonic WhisperFit® DC Ventilation Fan, 50/80/110 cfm Flow Rate, 3 or 4 in Diameter Duct, 120 V, 0.29 A Current/Amps, 60 Hz Frequency, 10/13.2/17.9 W, 4.6/8.8/17.1 W Wattage Consumption, 0.8/1.2 sones Sones, 13 in Grille Length, 13 in Grille Width, Polypropylene Grille, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 5-5/8 in Housing Height, 26 ga Galvanized Steel Housing Material, Ceiling Mounting, No Humidity Sensing, Import

WhisperFit® DC is the perfect solution for any remodeler looking to quickly and easily replace an existing fan from below the ceiling. Low profile WhisperFit® DC fans are an affordable choice for delivering quiet, energy efficient and effective exhaust ventilation for the many bathrooms in your home. Ideal for residential remodeling and hotel new construction or renovation, these fans fit where you need to put them.

Product Details

Panasonic WhisperFit® DC Ventilation Fan, 50/80/110 cfm Flow Rate, 3 or 4 in Diameter Duct, 120 V, 0.29 A Current/Amps, 60 Hz Frequency, 10/13.2/17.9 W, 4.6/8.8/17.1 W Wattage Consumption, 0.8/1.2 sones Sones, 13 in Grille Length, 13 in Grille Width, Polypropylene Grille, 10-1/4 in Housing Length, 10-1/4 in Housing Width, 5-5/8 in Housing Height, 26 ga Galvanized Steel Housing Material, Ceiling Mounting, No Humidity Sensing, Import

WhisperFit® DC is the perfect solution for any remodeler looking to quickly and easily replace an existing fan from below the ceiling. Low profile WhisperFit® DC fans are an affordable choice for delivering quiet, energy efficient and effective exhaust ventilation for the many bathrooms in your home. Ideal for residential remodeling and hotel new construction or renovation, these fans fit where you need to put them.

Attributes

Current/Amps: .29 A
Domestic/Import: Import
Duct Diameter: 3 or 4 in
Flow Rate: 50/80/110 cfm
Frequency Rating: 60 Hz
Grille Length: 13 in
Grille Material: Polypropylene
Grille Width: 13 in
Housing Height: 5-5/8 in
Housing Length: 10-1/4 in
Housing Material: 26 ga Galvanized Steel
Housing Width: 10-1/4 in
Humidity Sensing: No
Mounting Type: Ceiling
Sones: 0.8/1.2 sones
Voltage Rating: 120 V
Wattage Consumption: 10/13.2/17.9 W, 4.6/8.8/17.1 W

Features

  • Revolutionary ECM motor with SmartFlow™ technology ensures optimal cfm output
  • Built-in Pick-A-Flow™ airflow selector allows you to select your required airflow of 50, 80 or 110 cfm with a simple flip of a switch
  • Single hinged Flex-Z Fast® bracket provides flexible, fast and easy installation
  • Low profile 5-5/8 in housing depth fits in 2 x 6 joist size or larger
  • 10.2 W at 0.1 in-WG, 14.6 W at 0.25 in-WG, 17.9 at W at 0.375 in-WG/5.9 W at 0.1 in-WG, 9.4 W at 0.25 in-WG, 13.2 at W at 0.375 in-WG/4 W at 0.1 in-WG, 7.1 W at 0.25 in-WG, 10 at W at 0.375 in-WG
  • 0.8 sones at 0.1 in-WG, 1.2 sones at 0.2.5 in-WG/0.3 sones at 0.1 in-WG, 0.8 sones at 0.2.5 in-WG/<0.3 sones at 0.1 in-WG, 0.4 sones at 0.2.5 in-WG
