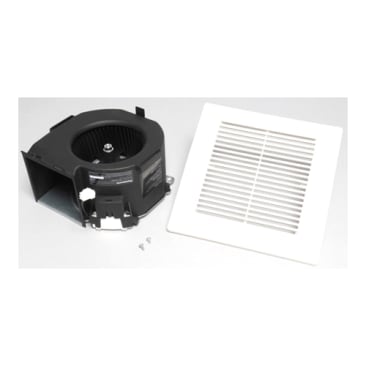

PANASONIC FV07VBB1 ECOVENT MOTOR/GRILLE ASSEMBLY
MFR Part #: FV-07VBB1
SKU #: 1291651
Brand: Panasonic
UPC: 885170186354
Panasonic FV-07VBB1 1-Phase AC Motor/Grille Assembly, For Use With EcoVent™ U-Can Contractor Pack and FV-07VBA1 Bath Fan Housing, 4 in Duct, 120 VAC, 0.15 A, 20 W, 70 or 90 cfm Fan, 1.1 Sone Noise, Ceiling/Wall Mount, Steel, White
3 years
New Residential Construction Applications
ASHRAE 62.2|LEED Compliant|ENERGY STAR® 3.0 Certified|PROP65: Cancer - www.p65warnings.ca.gov
Product Details
Attributes
Features
Resources
Panasonic AC Motor/Grille Assembly, 1-Phase, For Use With: EcoVent™ U-Can Contractor Pack and FV-07VBA1 Bath Fan Housing, Specifications: 4 in Duct, 120 V AC, 0.15 A, 20 W, 70 or 90 cfm Fan, 1.1 Sone Noise, Ceiling/Wall Mount, Steel, Hot Dipped Galvanized, White, 9-1/2 in L x 9-1/2 in W Dimensions, Domestic/Import: Import
Color:White
Dimensions:9-1/2 in L x 9-1/2 in W
Domestic/Import:Import
Finish:Hot Dipped Galvanized
Material:Steel
Specifications:4 in Duct, 120 V AC, 0.15 A, 20 W, 70 or 90 cfm Fan, 1.1 Sone Noise, Ceiling/Wall Mount
Suitable For Use With:EcoVent™ U-Can Contractor Pack and FV-07VBA1 Bath Fan Housing
Type:1-Phase
- 70 cfm, cost-effective energy Star® solution - 0.7 sones at 0.1 in wg (56 cfm/1.3 sones at 0.25 in wg)
- Unique Veri-Boost™ integral switch provides ventilation verification assurance via a 20 cfm boost
- Provides ventilation verification assurance - >=50 cfm installed performance
- Small grille design complements the aesthetics of your bathroom, powder room or laundry room
- Housing and motor/grille packaged separately, reduces risk of parts being lost or damaged onsite
- Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
- UL Listed for tub/shower enclosure when used with a GFCI protected circuit
- Single connection
Product Details
Panasonic AC Motor/Grille Assembly, 1-Phase, For Use With: EcoVent™ U-Can Contractor Pack and FV-07VBA1 Bath Fan Housing, Specifications: 4 in Duct, 120 V AC, 0.15 A, 20 W, 70 or 90 cfm Fan, 1.1 Sone Noise, Ceiling/Wall Mount, Steel, Hot Dipped Galvanized, White, 9-1/2 in L x 9-1/2 in W Dimensions, Domestic/Import: Import
Attributes
Color: White
Dimensions: 9-1/2 in L x 9-1/2 in W
Domestic/Import: Import
Finish: Hot Dipped Galvanized
Material: Steel
Specifications: 4 in Duct, 120 V AC, 0.15 A, 20 W, 70 or 90 cfm Fan, 1.1 Sone Noise, Ceiling/Wall Mount
Suitable For Use With: EcoVent™ U-Can Contractor Pack and FV-07VBA1 Bath Fan Housing
Type: 1-Phase
Features
- 70 cfm, cost-effective energy Star® solution - 0.7 sones at 0.1 in wg (56 cfm/1.3 sones at 0.25 in wg)
- Unique Veri-Boost™ integral switch provides ventilation verification assurance via a 20 cfm boost
- Provides ventilation verification assurance - >=50 cfm installed performance
- Small grille design complements the aesthetics of your bathroom, powder room or laundry room
- Housing and motor/grille packaged separately, reduces risk of parts being lost or damaged onsite
- Built-in metal flange provides blocking for penetrations through drywall as an air barrier and assists with the decrease in leakage in the building envelope during blower door testing
- UL Listed for tub/shower enclosure when used with a GFCI protected circuit
- Single connection
