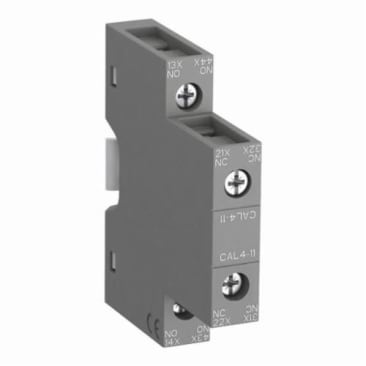

ABB CAL4-11 AUXILIARY CONTACT BLOCK 1SBN010120R1011

MFR Part #: CAL4-11
SKU #: 1156661
Brand: ABB
UPC: 804325546331
ABB CAL4-11 Auxiliary Contact Block, 600/690 V AC, 6 A, 1NO-1NC Contacts
RoHS Compliant | cUL Listed | CB | CCC | CE Certified | EAC | GOST | RINA Certified

ABB Auxiliary Contact Block, 600/690 V AC, 6 A, 50/60 Hz Frequency, 1NO-1NC Contacts, Side Mounting, For Use With: AF09 to AF38 and NF Contactor

Product Details

ABB Auxiliary Contact Block, 600/690 V AC, 6 A, 50/60 Hz Frequency, 1NO-1NC Contacts, Side Mounting, For Use With: AF09 to AF38 and NF Contactor

Attributes

Amperage Rating: 6 A
Country Of Origin: Czech Republic
Frequency Rating: 50/60 Hz
Mounting Type: Side
Number of Contacts: 1NO-1NC
Voltage Rating: 600/690 V AC

Features

  • 220/240 VAC at 4 A, 24/127 VAC at 6 A, 400/440 VAC at 3 A, 500 VAC at 2 A, 690 VAC at 2 A rated operational current AC-15
  • 110 VDC at 0.55 A/60 W, 125 VDC at 0.55 A/69 W), 220 VDC at 0.27 A/60 W, 24 VDC at 6 A/144 W, 250 VDC at 0.27 A/68 W, 400 VDC at 0.15 A/60 W, 48 VDC at 2.8 A/134 W, 500 VDC at 0.13 A/65 W, 600 VDC at 0.1 A/60 W, 72 VDC at 1 A/72 W, rated operational current DC-13
  • Screw terminal connection
  • 0.1 sec at 100 A, 1 sec at 50 A rated short time withstand current
