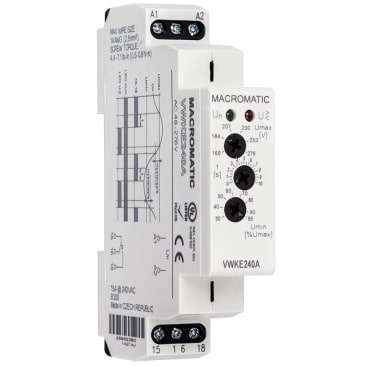

MACROMATIC VWKE240A 240VAC 15A SPDT PLUG IN VOLTAGE MONITOR RELAY

MACROMATIC VWKE240A Voltage Band Relay, VWKE Series, 15 A at 240V AC Contact Rating, Mechanical Life of 10000000 operations, Operating Temp of -20 to 55 deg C, Storage Temp of -30 to 70 deg C, DIN-Rail Mounting, 3 VA Load, 240 V AC Rating

As long as the monitored voltage (Un) remains within the OVER (Umax) & UNDER (Umin) voltage settings, the internal relay stays energized. If the monitored voltage falls outside this range, the relay will drop-out. The Umax dial sets the upper limit per the Overvoltage range of the product. The Umin dial sets the lower limit at 30-95% of the upper setting. This product has an adjustable time delay on drop-out of 0.1-10 seconds (t) to prevent nuisance tripping.

Over/Under Voltage Relays provide protection to equipment where either an over or under voltage condition is potentially damaging. They are designed to operate when the operating voltage reaches a preset value and drop-out when the operating voltage drops to a level below the preset value.
