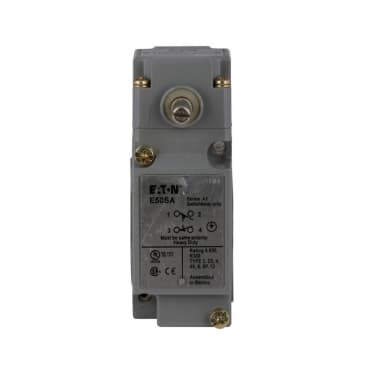

EATON E50AR1 E50 E50 LIMIT SWITCH 1-NORMALLY OPEN/1-NORMALLY CLOSED
Product Details
Attributes
Resources
EATON Limit Switch, Assembled Heavy Duty Plug-In, Series: E50, 1NO-1NC Contact Configuration, 10 A at 240 V AC, 1 A at 250 V DC Contact, Rotary Action, Side Rotary Actuator, Screw Terminal Connection, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, 4.22 in L x 1.54 in W x 2.46 in H Size, 10 to 200 deg F Operating, Die Cast Zinc
Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
Product Details
EATON Limit Switch, Assembled Heavy Duty Plug-In, Series: E50, 1NO-1NC Contact Configuration, 10 A at 240 V AC, 1 A at 250 V DC Contact, Rotary Action, Side Rotary Actuator, Screw Terminal Connection, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, 4.22 in L x 1.54 in W x 2.46 in H Size, 10 to 200 deg F Operating, Die Cast Zinc
Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
