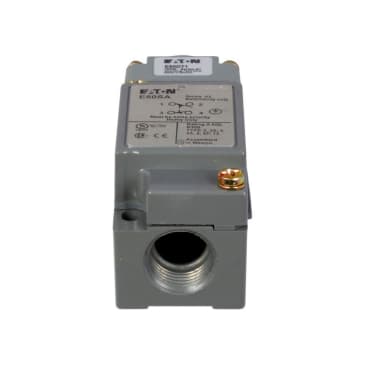

EATON E50SA 1-POLE E50 SWITCH BODY
Product Details
Attributes
Features
Resources
EATON Limit Switch Body, 1-Pole Heavy Duty Plug-In, Series: E50, 1NO-1NC Contact Configuration, 10 A at 12 V AC, 1 A at 125 V DC Contact, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, -40 to 250 deg F, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, Die Cast Zinc, 4-1/2 in L x 3-1/4 in W x 1-3/4 in H Dimensions
Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
- Without indicating light
Product Details
EATON Limit Switch Body, 1-Pole Heavy Duty Plug-In, Series: E50, 1NO-1NC Contact Configuration, 10 A at 12 V AC, 1 A at 125 V DC Contact, NEMA 1/3/3S/4/4X/6/6P/13/IP67 Enclosure, -40 to 250 deg F, For Use With: E50 Series Heavy Duty Plug-In Limit Switch, Die Cast Zinc, 4-1/2 in L x 3-1/4 in W x 1-3/4 in H Dimensions
Eaton's E50 modular plug-in limit switches are the industry standard with versatility of design and high reliability for low maintenance, installation and inventory costs. Standard Viton gaskets, seals and boots and a zinc die -cast enclosure provide exceptional chemical resistance to the common coolants, cleansing agents and hydraulic fluids found in machine tool, automotive, wastewater treatment and other heavy-duty industrial applications. Mounting dimensions accommodate both U.S. and DIN standards for easy retrofit installations. Super bright 24 – 120 Vac/Vdc LED indicating light versions simplify setup and troubleshooting operations.
Attributes
Features
- Without indicating light
