CARLO GAVAZZI CLP2EA1C115 COND.LEVEL 2 & 1 FILL EMPTY PLUG
Product Details
Attributes
Features
Resources

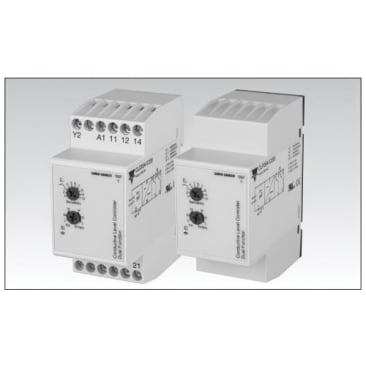

Carlo Gavazzi Liquid Level Controller, 2-Point Type CL, 115 VAC, 81 in Width, -20 to 50 deg C Maximum Temperature, Noryl PPO, Light Gray
u-Processor based level controller for liquids with a wide sensitivity range (like sewage water, chemicals, salt water etc.). Max/min control of charging/discharging. The sensitivity is adjustable by means of the potentiometer and the rotary switch. 2 x 8A DPDT relay output.
- 60.2 in height
- Conductive level controller
- Sensitivity adjustment from 250 Ohm to 500 k-Ohm
- For filling or emptying applications
- Low-voltage AC electrodes
- Easy installation with 11 pin circular plug
- LED-indication for output on and power on
- Two inputs
- DPDT relay
- 5 VA rated operational power
- 250 VAC rated insulation voltage
- 0.5 Hz operating frequency
- 1 sec on-off/OFF-ON response time
- M3 screw
- 0.4 to 0. 8 Nm tightening torque
- Output 2 x 8A/250 VAC DPDT relay
Product Details
Carlo Gavazzi Liquid Level Controller, 2-Point Type CL, 115 VAC, 81 in Width, -20 to 50 deg C Maximum Temperature, Noryl PPO, Light Gray
u-Processor based level controller for liquids with a wide sensitivity range (like sewage water, chemicals, salt water etc.). Max/min control of charging/discharging. The sensitivity is adjustable by means of the potentiometer and the rotary switch. 2 x 8A DPDT relay output.
Attributes
Features
- 60.2 in height
- Conductive level controller
- Sensitivity adjustment from 250 Ohm to 500 k-Ohm
- For filling or emptying applications
- Low-voltage AC electrodes
- Easy installation with 11 pin circular plug
- LED-indication for output on and power on
- Two inputs
- DPDT relay
- 5 VA rated operational power
- 250 VAC rated insulation voltage
- 0.5 Hz operating frequency
- 1 sec on-off/OFF-ON response time
- M3 screw
- 0.4 to 0. 8 Nm tightening torque
- Output 2 x 8A/250 VAC DPDT relay
