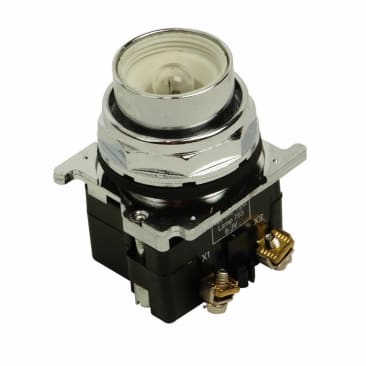

EATON 10250T411 120V TRANSFORMER ILLUMINATED PUSHBUTTON OPERATOR
Product Details
Attributes
Features
Resources
EATON Illuminated Pushbutton Operator, Heavy Duty Oiltight/Watertight, Series: 10250T, 30.5 mm, Momentary Contact Mode, 120 V AC, Extended Operator, Incandescent Lamp, Bezel/Housing: Chrome, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Flush Mount, 1 to 150 deg F, Die Cast Zinc
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
- EATON contact blocks feature enclosed silver contacts with pointed reliability nibs
- To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
- 755 lamp number
- Transformer type light unit
