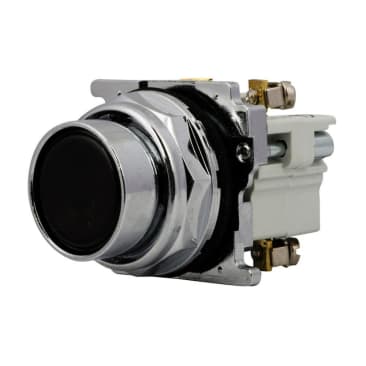

EATON 10250T30B PUSHBUTTON
Product Details
Attributes
Features
Resources
EATON Non-Illuminated Pushbutton, Heavy Duty Oil/Watertight Standard, Series: 10250T, 30.5 mm Size, 1NO-1NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC Contact, Bezel/Housing: Polished Chrome Bezel, Screw Terminal, NEMA 3/3R/4/4X/12/13 Enclosure, Flush Mounting, Die-Cast Zinc, Polished Chrome, Black
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
- Heavy duty die-cast zinc construction
- Enclosed silver contacts with reliability nibs
- Diaphragm seals with drainage holes
- Grounding nibs on the operator casing
- Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
- Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
- Grounding nibs bite through paint and other coatings to provide secure ground
