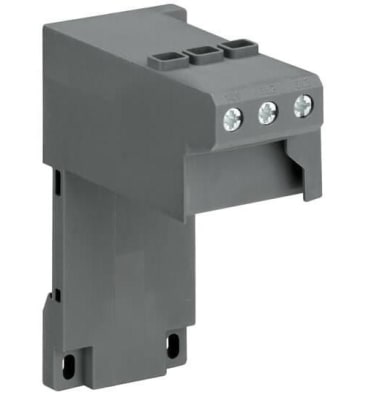

ABB DB42 PANEL MOUNT KIT F/TF42 OVERLOAD
MFR Part #: DB42
SKU #: 1118788
Brand: ABB
UPC: 804325537254
ABB DB42 Panel Mounted Single Mounting Kit, 690 V AC Rated Operational Voltage, 40 A Rated Operational Current Rating, For Use With TF42 Thermal Overload Relay
Mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits.
IEC/EN 60947-1/60947-4-1 | UL 508 | CSA C22.2 No. 14
Product Details
Attributes
Features
Resources
ABB Mounting Kit, Panel Mounted Single, For Use With: TF42 Thermal Overload Relay, 690 V AC Rated Operational Voltage, 40 A Rated Operational Current Rating, 50 mm H x 108 mm W x 102 mm D
Country Of Origin:Germany
Dimensions:50 mm H x 108 mm W x 102 mm D
Specifications:690 V AC Rated Operational Voltage, 40 A Rated Operational Current Rating
Suitable For Use With:TF42 Thermal Overload Relay
Type:Panel Mounted Single
- Main circuit 50 Hz, main circuit 60 Hz rated frequency
- Main circuit 6 kV rated impulse withstand voltage
- IP20 deg of protection
- 3 deg pollution
- Rigid 1 x 0.75 to 2.5 sq-mm
- Flexible with ferrule 1 x 0.75 to 10 sq-mm
- Flexible with insulated ferrule 1 x 0.75 to 10 sq-mm
- Flexible 1 x 0.75 to 10 sq-mm
- 1.5 to 2.7 Nm tightening torque
- 12 mm L stripping
- Pozidriv 2 recommended screwdriver
- 1 to 5 mounting position
Product Details
ABB Mounting Kit, Panel Mounted Single, For Use With: TF42 Thermal Overload Relay, 690 V AC Rated Operational Voltage, 40 A Rated Operational Current Rating, 50 mm H x 108 mm W x 102 mm D
Attributes
Country Of Origin: Germany
Dimensions: 50 mm H x 108 mm W x 102 mm D
Specifications: 690 V AC Rated Operational Voltage, 40 A Rated Operational Current Rating
Suitable For Use With: TF42 Thermal Overload Relay
Type: Panel Mounted Single
Features
- Main circuit 50 Hz, main circuit 60 Hz rated frequency
- Main circuit 6 kV rated impulse withstand voltage
- IP20 deg of protection
- 3 deg pollution
- Rigid 1 x 0.75 to 2.5 sq-mm
- Flexible with ferrule 1 x 0.75 to 10 sq-mm
- Flexible with insulated ferrule 1 x 0.75 to 10 sq-mm
- Flexible 1 x 0.75 to 10 sq-mm
- 1.5 to 2.7 Nm tightening torque
- 12 mm L stripping
- Pozidriv 2 recommended screwdriver
- 1 to 5 mounting position
