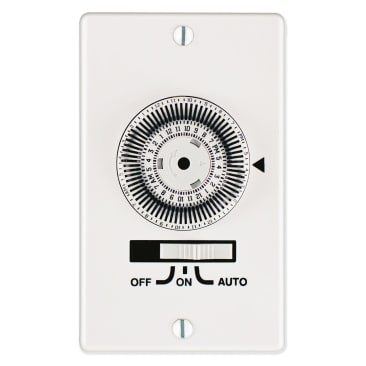

INTERMATIC KM2ST-1G Image 2
AD Rewards

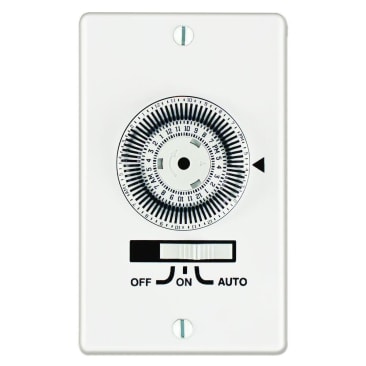

INTERMATIC KM2ST-1G IN WALL TIMER 1G SPST SWITCH

MFR Part #: KM2ST-1G
SKU #: 1037924
Brand: Intermatic®
UPC: 078275153660
Intermatic® KM2ST-1G KM2, 20 min to 24 hr Setting, 120 V AC, 1 hp, 1NO 1 Form A Contact, 1 Poles
1 Year Limited
CFLs Lighting, HVAC, Fans, Pumps, Office Machines, Indoor and Outdoor Applications
cCSAus Listed | cULus Listed

Intermatic®, KM2ST-1G, Heavy Duty, Series: KM2, Operation Mode: 24 hr, 120 V AC, 20 A, 1 hp, 1 Pole, 1NO 1 Form A Contact Form, 20 min to 24 hr Time Setting, -40 to 180 deg F, Wall Mounting

For installing on circuits up to 20 A, this timer provides automatic 24-hour ON/OFF control of outdoor/indoor lighting, fans, pumps, office equipment and other types of loads. Wall plate not included.

Product Details

Intermatic®, KM2ST-1G, Heavy Duty, Series: KM2, Operation Mode: 24 hr, 120 V AC, 20 A, 1 hp, 1 Pole, 1NO 1 Form A Contact Form, 20 min to 24 hr Time Setting, -40 to 180 deg F, Wall Mounting

For installing on circuits up to 20 A, this timer provides automatic 24-hour ON/OFF control of outdoor/indoor lighting, fans, pumps, office equipment and other types of loads. Wall plate not included.

Attributes

Amperage Rating: 20 A
Contact Form: 1NO 1 Form A
Country Of Origin: Mexico
Horsepower: 1 hp
Mounting Type: Wall
Number of Poles: 1
Operation Mode: 24 hr
Rewards: AD Rewards
Series: KM2
Temperature Rating: -40 to 180 deg F
Time Setting: 20 min to 24 hr
Type: Heavy Duty
Voltage Rating: 120 V AC

Features

  • 72 trippers provide 36 ON/OFF events per 24 hr period
  • Captive trippers with 20 min switching intervals
  • 3-position ON/OFF/AUTO override provides continuous ON or OFF operation
  • Reliable synchronous timer motor
  • Multiple wall plates available
