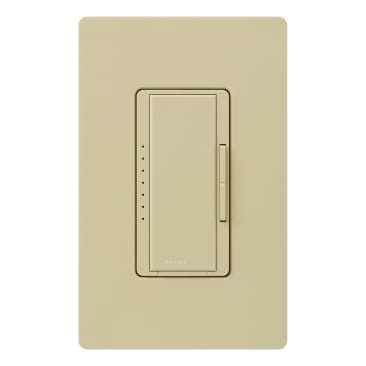

LUTRON MA-1000-IV-CSA MAESTRO SGL POLE & 3-WAY 1000W INC IV
MFR Part #: MA-1000-IV-CSA
SKU #: 1085556
Brand: Lutron®
UPC: 027557704007
Lutron® MA-1000-IV-CSA Maestro® Designer Style Smart Multi-Location Digital Fade Dimmer, 120 VAC, 1 Poles, On/Off Operation, Ivory
1 year Limited
Residential and Indoor
UL 1472 | ANSI/IEEE Standard C62.41 | cUL Listed | NOM Certified | CSA Certified
Product Details
Attributes
Features
Resources
Lutron®, MA-1000-IV-CSA, Digital Fade Dimmer, Designer Style Smart Multi-Location, Series: Maestro®, 120 VAC, 1000 W Power, 60 Hz Frequency, 1 Pole, Incandescent/Halogen Lamp, Preset Start, Operation Mode: On/Off, Tap Control, Wall Mounting, Screw Terminal, 32 to 104 deg F, Metal/Plastic, Ivory, 4.69 in H x 2.94 in W x 1.44 in D Dimensions
Color:
Ivory
Control:
Tap
Country Of Origin:
US
Dimensions:
4.69 in H x 2.94 in W x 1.44 in D
Frequency Rating:
60 Hz
Lamp Type:
Incandescent/Halogen
Material:
Metal/Plastic
Mounting Type:
Wall
Number of Poles:
1
Operation Mode:
On/Off
Power Rating:
1000 W
Series:
Maestro®
Start Type:
Preset
Temperature Rating:
32 to 104 deg F
Terminal Type:
Screw
Type:
Designer Style Smart Multi-Location
Voltage Rating:
120 VAC
- Uses standard single-pole and 3-way wiring for easy installation in any home
- Multi-location dimming from up to 10 locations
- Gloss finish
- Includes radio frequency interference suppression
- Raise from off
- Precise color matching across all controls
- LED's indicate light level and glow softly as a locator light in the dark
- Power failure memory
- Special Features! Two taps on the switch brings lights on to full brightness; press and hold the switch to slowly fade lights to off over 10 seconds
- Features a clean, flush, stylish appearance
- High-tech "Smart Dimmer" with microprocessor technology for a standard designer wallplate opening
- Electrostatic discharge tested
- Frequency compensation
- Front accessible service switch (FASSTM) to disconnect load power
Product Details
Lutron®, MA-1000-IV-CSA, Digital Fade Dimmer, Designer Style Smart Multi-Location, Series: Maestro®, 120 VAC, 1000 W Power, 60 Hz Frequency, 1 Pole, Incandescent/Halogen Lamp, Preset Start, Operation Mode: On/Off, Tap Control, Wall Mounting, Screw Terminal, 32 to 104 deg F, Metal/Plastic, Ivory, 4.69 in H x 2.94 in W x 1.44 in D Dimensions
Attributes
Color: Ivory
Control: Tap
Country Of Origin: US
Dimensions: 4.69 in H x 2.94 in W x 1.44 in D
Frequency Rating: 60 Hz
Lamp Type: Incandescent/Halogen
Material: Metal/Plastic
Mounting Type: Wall
Number of Poles: 1
Operation Mode: On/Off
Power Rating: 1000 W
Series: Maestro®
Start Type: Preset
Temperature Rating: 32 to 104 deg F
Terminal Type: Screw
Type: Designer Style Smart Multi-Location
Voltage Rating: 120 VAC
Features
- Uses standard single-pole and 3-way wiring for easy installation in any home
- Multi-location dimming from up to 10 locations
- Gloss finish
- Includes radio frequency interference suppression
- Raise from off
- Precise color matching across all controls
- LED's indicate light level and glow softly as a locator light in the dark
- Power failure memory
- Special Features! Two taps on the switch brings lights on to full brightness; press and hold the switch to slowly fade lights to off over 10 seconds
- Features a clean, flush, stylish appearance
- High-tech "Smart Dimmer" with microprocessor technology for a standard designer wallplate opening
- Electrostatic discharge tested
- Frequency compensation
- Front accessible service switch (FASSTM) to disconnect load power
