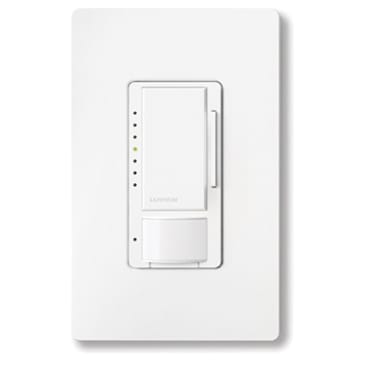

LUTRON MSCL-OP153M-WH Image 1

LUTRON MSCL-OP153M-WH 600W 1P/3WAY OCCUPANCY/DIMER WHT

MFR Part #: MSCL-OP153M-WH
SKU #: 1108141
Brand: Lutron®
UPC: 784276054843
Lutron® MSCL-OP153M-WH Maestro® Multi-Location Occupancy Sensing CL Dimmer, 120 V AC, 1 Poles, On/Off Operation, White
5 years Limited
Kids Room and Kitchen Applications
cULus Listed | Title 20/24 Compliant | NOM Certified

Lutron®, MSCL-OP153M-WH, Occupancy Sensing CL Dimmer, Multi-Location, Series: Maestro®, 120 V AC, 600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: On/Off, NEMA WD7 Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, Plastic, White, 2-15/16 in W x 1-1/8 in D x 4-11/16 in H Dimensions

The Lutron Maestro LED+ Motion Sensor Dimmer Switch works just like a Lutron Maestro dimmer, with the addition of Lutron’s advanced motion sensing technology to automatically and gradually turn the lights on and off. The LED+ Motion Sensor Dimmer Switch is rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs. Install in a single pole, 3-way with existing switch, or with Maestro companion dimmers (MA-R/MSC-AD) to dim from up to 9 locations. Use the raise/lower buttons to adjust the brightness for any activity or determine the preset level to ensure lights always turn on to your desired light level. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensing dimmer to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Easy button programming is available to customize both the dimmer and the sensor’s functions, such as timeout, occupied level and sensor mode. Lutron sensors have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. The occupied level is the brightness the sensor will turn on when motion is detected. Change the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Product Details

Lutron®, MSCL-OP153M-WH, Occupancy Sensing CL Dimmer, Multi-Location, Series: Maestro®, 120 V AC, 600 W Power, 60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Preset Start, Operation Mode: On/Off, NEMA WD7 Enclosure, Wall Mounting, Screw Terminal, 32 to 104 deg F, Plastic, White, 2-15/16 in W x 1-1/8 in D x 4-11/16 in H Dimensions

The Lutron Maestro LED+ Motion Sensor Dimmer Switch works just like a Lutron Maestro dimmer, with the addition of Lutron’s advanced motion sensing technology to automatically and gradually turn the lights on and off. The LED+ Motion Sensor Dimmer Switch is rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs. Install in a single pole, 3-way with existing switch, or with Maestro companion dimmers (MA-R/MSC-AD) to dim from up to 9 locations. Use the raise/lower buttons to adjust the brightness for any activity or determine the preset level to ensure lights always turn on to your desired light level. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Equipped with smart ambient light detection (ALD), you can customize your sensing dimmer to detect daylight, so lights don't turn on when enough natural light is present in the room. Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Easy button programming is available to customize both the dimmer and the sensor’s functions, such as timeout, occupied level and sensor mode. Lutron sensors have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. The occupied level is the brightness the sensor will turn on when motion is detected. Change the sensor to vacancy mode to meet Title 24 requirements: lights only turn on with a manual press of the tap switch but automatically turn off if the sensor no longer detects motion. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Attributes

ColorWhite
Country Of OriginChina
Dimensions2-15/16 in W x 1-1/8 in D x 4-11/16 in H
Frequency Rating60 Hz
Lamp TypeCFL/Halogen/Incandescent/LED
MaterialPlastic
Mounting TypeWall
Number of Poles1
Operation ModeOn/Off
Power Rating600 W
SeriesMaestro®
Start TypePreset
Temperature Rating32 to 104 deg F
Terminal TypeScrew
TypeMulti-Location
Voltage Rating120 VAC
Enclosure TypeNEMA WD7

Features

  • Rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs, No Neutral or Ground required
  • Screw Terminal or Push-in Installation, 120V
  • Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R), compatible with an existing 3-way switch
  • Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
  • 180 deg sensor field of view (900 sq ft major motion and 400 sq ft minor motion coverage), Tamper-resistant lens
