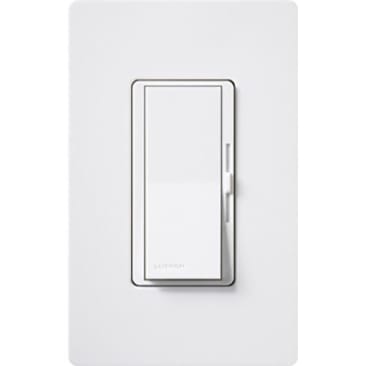

LUTRON DVTV-WH Image 1

LUTRON DVTV-WH DIVA CONTROL CURRENT DIMMER 30MA 0-10V

MFR Part #: DVTV-WH
SKU #: 1119529
Brand: Lutron®
UPC: 027557663458
Lutron® DVTV-WH 3-Way Dimmer, 24 V DC, 30 mA, 1 Pole, White
Limited
UL Listed | UL 244A

Lutron® Dimmer, 3-Way, 24 V DC, 30 mA, 50/60 Hz, 1 Pole, Fluorescent Lamp, Paddle, Wall Mount, 32 to 104 deg F, Plastic, White, 4.69 in H x 2.94 in W x 1.61 in D

The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmer switch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), Power Pack (PP-DV) required. Coordinating wall plate and required Power Pack sold separately.

Product Details

Lutron® Dimmer, 3-Way, 24 V DC, 30 mA, 50/60 Hz, 1 Pole, Fluorescent Lamp, Paddle, Wall Mount, 32 to 104 deg F, Plastic, White, 4.69 in H x 2.94 in W x 1.61 in D

The Diva 0-10V dimmer switch is a simple solution is designed to match existing design style switches and accessories. Easily turn the lights on and off with a paddle switch, and use the slide control to adjust the lights to the perfect level. The new Diva 0 - 10-Volt dimmer switch is a 0-10 VDC dimmer with 3-way functionality for 3rd party 0-10-Volt fixtures (LED and fluorescent), Power Pack (PP-DV) required. Coordinating wall plate and required Power Pack sold separately.

Attributes

Amperage Rating: 30 mA
Color: White
Control: Paddle
Country Of Origin: US
Dimensions: 4.69 in H x 2.94 in W x 1.61 in D
Frequency Rating: 50/60 Hz
Lamp Type: Fluorescent
Material: Plastic
Mounting Type: Wall
Number of Poles: 1
Temperature Rating: 32 to 104 deg F
Type: 3-Way
Voltage Rating: 24 V DC

Features

  • Separate Power Pack (PP-DV) required for dimmer, Power Pack requires Neutral
  • Large paddle switch with a captive linear-slide control for a standard designer-opening wall plate
  • Easily replaces existing switch and installs in as little as 15 min

Resources

Full Engineering Drawing
Instruction/Installation Manual
Specification Sheet
Warranty Information
