LUTRON MA-PRO-WH CL PRO 250W LED DIMMER
Product Details
Attributes
Features
Resources
Lutron® Maestro® C.L® Dimmer, Phase Selectable, Series: MA-PRO, 120 V AC, 250/500/400 W Power, 50/60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Operation Mode: On/Off, Tap/Touch Rocker Control, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 0.32 in D Dimensions
Built for advanced lighting applications where flexibility and multi-location dimming matter most, the Lutron Maestro Multi-location Dimmer Switch - LED+ Pro Max model delivers the gold standard in dimming with broad load compatibility and intuitive controls professionals trust. It offers higher power and advanced versatility in one dimmer pros can keep on the truck to stay ready for a wide range of lighting conditions. The Maestro Multi-location Dimmer Switch - LED+ Pro Max model supports up to 250W of dimmable LED, 500W of electronic low voltage (ELV), incandescent, or halogen, and 400VA of magnetic low voltage (MLV). With phase-selectable dimming and Auto-Select technology, it can choose forward or reverse phase operation based on wiring conditions to help reduce flicker, buzzing, and humming across a wide range of fixtures. Designed for single-pole or multi-location applications, it works with up to nine compatible Maestro Companion Dimmer (MA-R-XX, sold separately) for control from up to 10 locations. A neutral wire is optional for LED, incandescent, and halogen loads, while ELV and MLV applications require a neutral. The large Maestro tap switch provides reliable on/off control, while dedicated raise and lower buttons allow precise local dimming. Advanced Programming Mode enables customization of preset light levels, high- and low-end trim, fade times, phase selection, and indicator lights. Interchangeable color change kits (MK-D, sold separately) make it easy to update décor without replacing the device. Backed by a 10-year limited warranty with registration (5 years without registration) and 24/7 customer support, the Maestro Multi-location Dimmer Switch - LED+ Pro Max model delivers professional-grade dimming control for jobs that call for broad load support and control from multiple locations.
- Neutral Optional for LED, CFL, and Incandescent/Halogen, Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1% LED drivers
- Single pole or multi-location dimming from up to 9 locations with companion dimmer (MA-R-xx sold-separately)

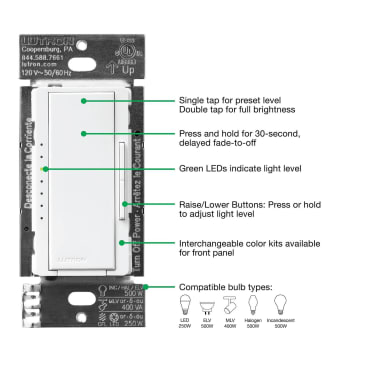

- Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select
- Interchangeable color kits available for front panel (color change kit MK-D sold separately)
- Phase Auto-Select - Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase, When neutral is not connected, the automatic default is forward phase)
Product Details
Lutron® Maestro® C.L® Dimmer, Phase Selectable, Series: MA-PRO, 120 V AC, 250/500/400 W Power, 50/60 Hz Frequency, 1 Pole, CFL/Halogen/Incandescent/LED Lamp, Operation Mode: On/Off, Tap/Touch Rocker Control, 0 to 40 deg C, Plastic, White, 4.69 in H x 2.94 in W x 0.32 in D Dimensions
Built for advanced lighting applications where flexibility and multi-location dimming matter most, the Lutron Maestro Multi-location Dimmer Switch - LED+ Pro Max model delivers the gold standard in dimming with broad load compatibility and intuitive controls professionals trust. It offers higher power and advanced versatility in one dimmer pros can keep on the truck to stay ready for a wide range of lighting conditions. The Maestro Multi-location Dimmer Switch - LED+ Pro Max model supports up to 250W of dimmable LED, 500W of electronic low voltage (ELV), incandescent, or halogen, and 400VA of magnetic low voltage (MLV). With phase-selectable dimming and Auto-Select technology, it can choose forward or reverse phase operation based on wiring conditions to help reduce flicker, buzzing, and humming across a wide range of fixtures. Designed for single-pole or multi-location applications, it works with up to nine compatible Maestro Companion Dimmer (MA-R-XX, sold separately) for control from up to 10 locations. A neutral wire is optional for LED, incandescent, and halogen loads, while ELV and MLV applications require a neutral. The large Maestro tap switch provides reliable on/off control, while dedicated raise and lower buttons allow precise local dimming. Advanced Programming Mode enables customization of preset light levels, high- and low-end trim, fade times, phase selection, and indicator lights. Interchangeable color change kits (MK-D, sold separately) make it easy to update décor without replacing the device. Backed by a 10-year limited warranty with registration (5 years without registration) and 24/7 customer support, the Maestro Multi-location Dimmer Switch - LED+ Pro Max model delivers professional-grade dimming control for jobs that call for broad load support and control from multiple locations.
Attributes
Features
- Neutral Optional for LED, CFL, and Incandescent/Halogen, Neutral Required for ELV, MLV, dimmable fluorescent ballasts, and Hi-Lume 1% LED drivers
- Single pole or multi-location dimming from up to 9 locations with companion dimmer (MA-R-xx sold-separately)
- Advanced Programming Mode allows users to customize the controls preset light level, high- and low-end trims, disable indicator lights, fade times, and phase select
- Interchangeable color kits available for front panel (color change kit MK-D sold separately)
- Phase Auto-Select - Chooses between either reverse or forward phase (When neutral is connected the automatic default is reverse phase, When neutral is not connected, the automatic default is forward phase)
