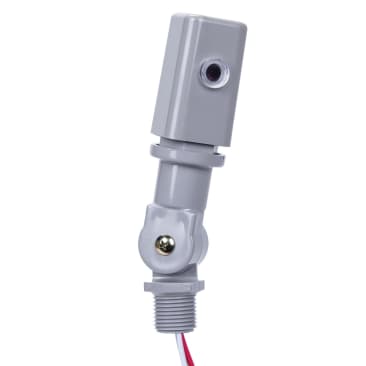

INTERMATIC EK4236S ELEC PHOTO CTRL SWVL MNT SIDE LENS 6AEB

Name: INTERMATIC EK4236S ELEC PHOTO CTRL SWVL MNT SIDE LENS 6AEB
Brand: Intermatic®
SKU: 1115464
Availability: InStock

MFR Part #: EK4236S

SKU #: 1115464

Brand: Intermatic®

UPC: 078275146303

Intermatic® EK4236S Electronic Stem and Swivel Mounting Photocontrol, 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Box/Fixture Mount, Plastic

8 Years

Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control Applications

ANSI C136.24 Compliant | UL Certified to US | CSA Certified to Canadian | Title CA 20 Listed

Product Details
Attributes
Features
Resources

Intermatic® Stem and Swivel Mounting Photocontrol, Electronic, LED Fixture, 105 to 305 VAC, 6 A, 50/60 Hz Frequency, 1000 W Tungsten, 1800 VA Ballast, 2 to 5 s Timing, 18 AWG Wire, Solid State Photo/Silicon IR Filtered Sensor, 1.5 FC Turn On/2.25 FC Turn Off Sensitivity, NEMA 4/10 Enclosure, Environmental Conditions: -40 to 158 deg F Operating Temperature, 1000 Cycles Operating Cycles, Box/Fixture Mounting, Plastic, Gray, 2.25 in H x 1.3 in W x 1.24 in D Dimensions

NightFox™ electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9" wire leads.

Product Details

Intermatic® Stem and Swivel Mounting Photocontrol, Electronic, LED Fixture, 105 to 305 VAC, 6 A, 50/60 Hz Frequency, 1000 W Tungsten, 1800 VA Ballast, 2 to 5 s Timing, 18 AWG Wire, Solid State Photo/Silicon IR Filtered Sensor, 1.5 FC Turn On/2.25 FC Turn Off Sensitivity, NEMA 4/10 Enclosure, Environmental Conditions: -40 to 158 deg F Operating Temperature, 1000 Cycles Operating Cycles, Box/Fixture Mounting, Plastic, Gray, 2.25 in H x 1.3 in W x 1.24 in D Dimensions

NightFox™ electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9" wire leads.

Attributes

Amperage Rating: 6 A

Ballast Load: 1800 VA

Color: Gray

Country Of Origin: Mexico

Dimensions: 2.25 in H x 1.3 in W x 1.24 in D

Enclosure Type: NEMA 4/10

Environmental Conditions: -40 to 158 deg F Operating Temperature

Fixture Type: LED

Frequency Rating: 50/60 Hz

Material: Plastic

Mounting Type: Box/Fixture

Operating Cycles: 1000 Cycles

Rewards: AD Rewards

Sensitivity: 1.5 FC Turn On/2.25 FC Turn Off

Sensor Type: Solid State Photo/Silicon IR Filtered

Timing Range: 2 to 5 s

Tungsten Rating: 1000 W

Type: Electronic

Voltage Rating: 105 to 305 VAC

Wire Size: 18 AWG

Features

Non-drift silicon light sensor with IR filter
DC relay with zero-crossing circuitry for extended life
Conformal coated PCB
15-year design life
Exceeds 10,000 ON/OFF switching cycles
Fail ON mode

Resources

Specification Sheet
