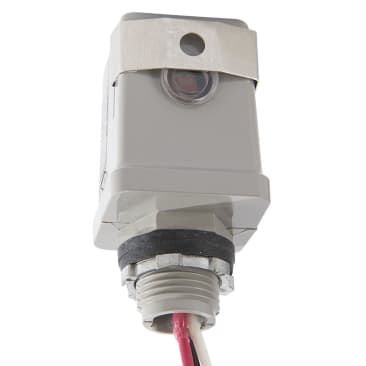

INTERMATIC K4121C STEM MOUNT 1/2IN 120V

MFR Part #: K4121C
SKU #: 0737380
Brand: Intermatic®
UPC: 078275002012
Intermatic® K4121C K4100 Stem Mounting Photocontrol, 120 V AC, 1800 W Tungsten, 1000 VA Ballast, Box/Fixture Mount, Polycarbonate
Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting and Dusk to Dawn Lighting Control Applications
UL Recognized | CSA Certified | Title CA 20 Listed | California Title 24 Compliant

Intermatic® Stem Mounting Photocontrol, Series: K4100, 120 V AC, 15/8.3 A, 50/60 Hz, 1800 W Tungsten, 1000 VA Ballast, SPST, 30 to 90 s, 18 AWG Wire, Thermal/Cadmium Sulfide Sensor, 1 to 5 FC ON/3 to 15 FC OFF, Environmental Conditions: -40 to 158 deg F Operating Temperature, Stem Mount, Polycarbonate, Gray, 1-9/16 in L x 1-9/16 in W x 3 in H

These photocontrols install on standard outdoor light fixtures and electrical boxes with 1/2"-14 NPSM thread or 7/8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.

Product Details

Intermatic® Stem Mounting Photocontrol, Series: K4100, 120 V AC, 15/8.3 A, 50/60 Hz, 1800 W Tungsten, 1000 VA Ballast, SPST, 30 to 90 s, 18 AWG Wire, Thermal/Cadmium Sulfide Sensor, 1 to 5 FC ON/3 to 15 FC OFF, Environmental Conditions: -40 to 158 deg F Operating Temperature, Stem Mount, Polycarbonate, Gray, 1-9/16 in L x 1-9/16 in W x 3 in H

These photocontrols install on standard outdoor light fixtures and electrical boxes with 1/2"-14 NPSM thread or 7/8" knock-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.

Attributes

Amperage Rating: 15/8.3 A
Ballast Load: 1000 VA
Color: Gray
Contact Form: SPST
Country Of Origin: Mexico
Dimensions: 1-9/16 in L x 1-9/16 in W x 3 in H
Environmental Conditions: -40 to 158 deg F Operating Temperature
Frequency Rating: 50/60 Hz
Material: Polycarbonate
Mounting Type: Box/Fixture
Rewards: AD Rewards
Sensitivity: 1 to 5 FC On/3 to 15 FC Off
Sensor Type: Thermal/Cadmium Sulfide
Series: K4100
Timing Range: 30 to 90 s
Tungsten Rating: 1800 W
Voltage Rating: 120 V AC
Wire Size: 18 AWG

Features

  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Delay feature prevents unwanted OFF switching
  • Gray plastic housing
  • 1/2 in-14 NPSM threaded stem

Resources

Specification Sheet
