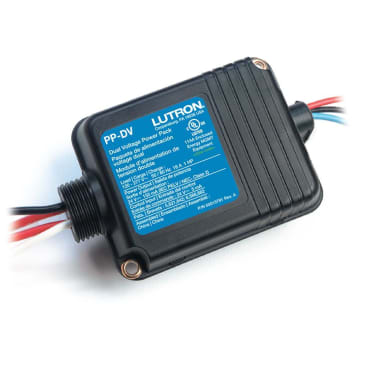

LUTRON PP-DV Image 1

LUTRON PP-DV LED POWER PACK 0-10V 120V TO 24V

MFR Part #: PP-DV
SKU #: 1122799
Brand: Lutron®
UPC: 027557980845
Lutron® PP-DV PP Power Pack, 6.5 W, 120 to 277 VAC Input, 24 VAC Output, 16 A, 16 A at 120/277 V Relay
For use with occupancy sensors
UL | cUL Listed

Lutron® Power Pack, Series: PP, 6.5 W, 120 to 277 VAC Input, 24 VAC Output, 50/60 Hz, 16 A, 16 A at 120/277 V Relay Rating, 0 to 40 deg C Operating, 0 to 90% Humidity, 5 mA at 24 V Control Input, 2.33 in Width, 1.36 in D, 3.69 in Height, Plastic, Black

PP Series Power Packs provide both the 24 V- power supply to operate LutronR wired occupancy sensors, as well as the 16 A line voltage relay to control the load, in one compact housing. The unit can be mounted inside the ballast enclosure or inside/outside a junction box.

Product Details

Lutron® Power Pack, Series: PP, 6.5 W, 120 to 277 VAC Input, 24 VAC Output, 50/60 Hz, 16 A, 16 A at 120/277 V Relay Rating, 0 to 40 deg C Operating, 0 to 90% Humidity, 5 mA at 24 V Control Input, 2.33 in Width, 1.36 in D, 3.69 in Height, Plastic, Black

PP Series Power Packs provide both the 24 V- power supply to operate LutronR wired occupancy sensors, as well as the 16 A line voltage relay to control the load, in one compact housing. The unit can be mounted inside the ballast enclosure or inside/outside a junction box.

Attributes

Amperage Rating: 16 A
Color: Black
Control Input: 5 mA at 24 V
Country Of Origin: China
Depth: 1.36 in
Frequency Rating: 50/60 Hz
Height: 3.69 in
Humidity: 0 to 90%
Input Voltage: 120 to 277 VAC
Material: Plastic
Operating Temperature: 0 to 40 deg C
Output Voltage: 24 VAC
Power Rating: 6.5 W
Relay Rating: 16 A at 120/277 V
Series: PP
Width: 2.33 in

Features

  • The manual ON power pack (-DV-M) is used to provide a vacancy solution when paired with Lutron® wired occupancy sensors
  • A low voltage momentary switch should be used to manually turn ON the load while the sensor automatically shuts the load OFF when unoccupied
  • Pressing the momentary switch can also turn the load OFF
  • High-impact UL 94, flammability-rated, plastic case construction
  • Relay Class B insulating material, silver alloy contacts
  • Complies with requirements for use in a compartment handling environmental air (plenum) per NEC® 2011 300.22(C)(3)
  • 1 HP motor load
  • 16 to 18 AWG wire lead
