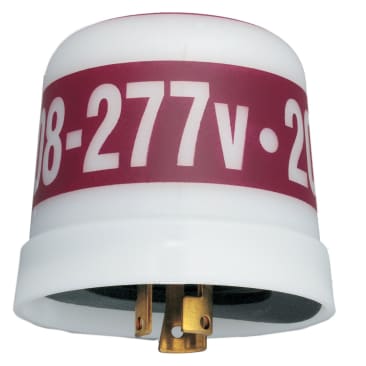

INTERMATIC LC4523 Image 1
AD Rewards

INTERMATIC LC4523 TL PHOTO CONTROL 208-277V TUNGSTEN

MFR Part #: LC4523
SKU #: 1005748
Brand: Intermatic®
UPC: 078275700611
Intermatic® LC4523 LC4500 Locking Mounting Thermal Photocontrol, 208 to 277 VAC, 3120 to 4155 W Tungsten, 1700 to 2300 VA Ballast, Fixture Mount, Polypropylene
2 Years Limited
For dusk-to-dawn lighting control
UL Recognized | CSA Certified | Title CA 20 Listed | California Title 24 Compliant

Intermatic® Thermal Photocontrol, Locking Mounting, Series: LC4500, 208 to 277 VAC, 15 A, 50/60 Hz Frequency, 3120 to 4155 W Tungsten, 1700 to 2300 VA Ballast, SPST Contact Form, Spark Gap Arrester, 30 to 90 s Timing, Cadmium Sulfide Sensor, 0.5 FC ON, 15 FC OFF Sensitivity, Environmental Conditions: -20 to 104 deg F, 3650 Cycles Operating Cycles, Fixture Mounting, Polypropylene, Maroon/White, 3 in Dia x 2-3/4 in H Dimensions

These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.

Product Details

Intermatic® Thermal Photocontrol, Locking Mounting, Series: LC4500, 208 to 277 VAC, 15 A, 50/60 Hz Frequency, 3120 to 4155 W Tungsten, 1700 to 2300 VA Ballast, SPST Contact Form, Spark Gap Arrester, 30 to 90 s Timing, Cadmium Sulfide Sensor, 0.5 FC ON, 15 FC OFF Sensitivity, Environmental Conditions: -20 to 104 deg F, 3650 Cycles Operating Cycles, Fixture Mounting, Polypropylene, Maroon/White, 3 in Dia x 2-3/4 in H Dimensions

These photocontrols install on light fixtures with ANSI C136.10 NEMA receptacles commonly found on street light fixtures. Locking type design facilitates fast installation and replacement of photocontrol.

Attributes

Amperage Rating: 15 A
Arrester: Spark Gap
Ballast Load: 1700 to 2300 VA
Color: Maroon/White
Contact Form: SPST
Country Of Origin: Mexico
Dimensions: 3 in Dia x 2-3/4 in H
Environmental Conditions: -20 to 104 deg F
Frequency Rating: 50/60 Hz
Material: Polypropylene
Mounting Type: Fixture
Operating Cycles: 3650 Cycles
Rewards: AD Rewards
Sensitivity: 0.5 FC ON, 15 FC OFF
Sensor Type: Cadmium Sulfide
Series: LC4500
Timing Range: 30 to 90 s
Tungsten Rating: 3120 to 4155 W
Type: Locking Mounting
Voltage Rating: 208 to 277 VAC

Features

  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Integral high impact thermoplastic housing
  • Locking type plug for quick installation and changeover
  • Delay feature prevents unwanted OFF switching

Resources

Specification Sheet
