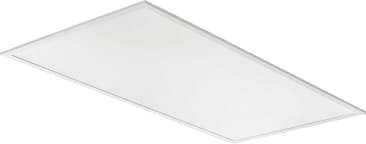

LITHONIA CPX 2X4 4000LM 40K M2 Image 1

LITHONIA 2628G1 FLT PNL 2X4 NMNL 4KLM CPX 2X4 4000LM 40K M2

MFR Part #: CPX 2X4 4000LM 40K M2
SKU #: 1224556
Brand: Acuity Brands | Lithonia Lighting®
UPC: 191848338506
Lithonia Lighting® CPX 2X4 4000LM 40K M2 CPX™ Rectangular Flat Panel, 40 W Fixture, 120 to 277 V, Aluminum Housing
5 years Limited
Offices, Schools, Retail, Convenience Stores, Hospitals, Healthcare Facilities and Other Commercial Space Applications
DLC Standard | CSA Certified for Damp Location | ETL Listed | IC Certified

Lithonia Lighting®, CPX 2X4 4000LM 40K M2, Flat Panel, Rectangular, Series: CPX™, 120 to 277 V, 40 W Fixture, 100 Lumens/W Light Output, 50000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic Lens, 4000 Lumens, Ceiling/Surface Mounting, Aluminum Housing Material, 4 ft L x 2 ft W x 1.68 in D Dimensions

The 2 ft. x 4 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This panel offers 4000 lumens and 4000K cool white LED color temperature for a cool white color temperature. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.

Product Details

Lithonia Lighting®, CPX 2X4 4000LM 40K M2, Flat Panel, Rectangular, Series: CPX™, 120 to 277 V, 40 W Fixture, 100 Lumens/W Light Output, 50000 hr Average Life, 4000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Driver Ballast, Acrylic Lens, 4000 Lumens, Ceiling/Surface Mounting, Aluminum Housing Material, 4 ft L x 2 ft W x 1.68 in D Dimensions

The 2 ft. x 4 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This panel offers 4000 lumens and 4000K cool white LED color temperature for a cool white color temperature. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.

Attributes

Color Temperature: 4000 K
Country Of Origin: Vietnam
Dimensions: 4 ft L x 2 ft W x 1.68 in D
Fixture Wattage: 40 W
Lumens: 4000 Lumens
Average Life: 50000 hr
Ballast Type: 0 to 10 V Dimming Driver
Color Rendering Index (CRI): 80
Housing Material: Aluminum
Lens Type: Acrylic
Light Output: 100 Lumens/W
Mounting Type: Ceiling/Surface
Series: CPX™
Type: Rectangular
Voltage Rating: 120 to 277 V

Features

  • The 2 ft x 4 ft CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price
  • The smooth, even lens projects a crisp and clean aesthetic
  • CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects
  • DESIGN - CPX's low-profile design with steel backplate provides installation flexibility especially in restricted ceiling space
  • ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination for extended service life
  • HOURS OF LIFE - Greater than 70 percent LED lumen maintenance at 50,000 hr (L70>50,000)
  • INSTALLATION - can be recessed, suspended or surface box mounted with additional kit
  • BATTERY - Field-installable LED emergency driver (PS1055CP) sold separately

Resources

Instruction/Installation Manual
Specification Sheet
