ACUITY 268TUH TWX1 LED ALO 40K MVOLT DDBTXD
Product Details
Attributes
Features
Resources

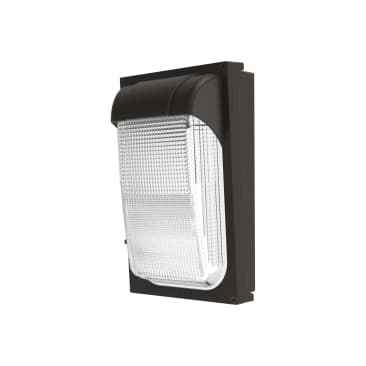

Lithonia Lighting® Wall Pack, TWX1 Series, 120-277 V, 0.081 to 0.187 A, 15 W Fixture Wattage, LED Lamp, 2950 Lumens, 4000 K, 80 CRI, Dimmable, 100000 hr Average Life, Aluminum Fixture, Textured Dark Bronze Fixture, 5 in Overall Length, 7-1/2 in Overall Width, 12 in Overall Height, Rectangular Shade, Wall Mounting, Additional Information: Import, 32 to 104 deg F Temperature Rating
TWX LED wall pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and a traditional form. The TWX1 LED is energy efficient saving up to 83% in energy costs when replacing a metal halide luminaire. Offering an expected service life of more than 20 years, the TWX1 LED eliminates frequent lamp and ballast replacements associated with traditional technologies. The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site. The TWX1 LED ALO luminaires can replace anything from a CFL to 100 W metal halide luminaire.
- The TWX1 LED is an energy-efficient, low maintenance LED wall pack for replacing up to a 70 W HPS or 100 W MH fixture, providing the same footprint on the wall
- Two-piece die-cast aluminum housing to optimize thermal management through conductive and convective cooling
- The door is hinged on the side and can be removed for easy installation
- The housing is completely sealed against moisture and environmental contaminants (IP65) and is suitable for the hose-down applications
- Exterior painted parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering
- A tightly controlled multi-stage process ensures a 3 mil thickness for a finish that can withstand extreme climate changes without cracking or peeling
- The advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
- The US-made borosilicate glass refractor is specifically designed to maximize light extraction and create a fully luminous luminaire for a better nighttime look
- Light engine consists of high-efficacy LEDs mounted to housing to maximize heat dissipation and promote long-life (up to L81/100000 hr at 25 deg C)
- The electronic driver has a power factor of >90%, THD <20%
- Designed for wall mounting above 4 ft from the ground
- Housing is configured for mounting directly over a standard junction box (by others) or for surface wiring via the 1/2 in threaded conduit entry on the top
Product Details
Lithonia Lighting® Wall Pack, TWX1 Series, 120-277 V, 0.081 to 0.187 A, 15 W Fixture Wattage, LED Lamp, 2950 Lumens, 4000 K, 80 CRI, Dimmable, 100000 hr Average Life, Aluminum Fixture, Textured Dark Bronze Fixture, 5 in Overall Length, 7-1/2 in Overall Width, 12 in Overall Height, Rectangular Shade, Wall Mounting, Additional Information: Import, 32 to 104 deg F Temperature Rating
TWX LED wall pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and a traditional form. The TWX1 LED is energy efficient saving up to 83% in energy costs when replacing a metal halide luminaire. Offering an expected service life of more than 20 years, the TWX1 LED eliminates frequent lamp and ballast replacements associated with traditional technologies. The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site. The TWX1 LED ALO luminaires can replace anything from a CFL to 100 W metal halide luminaire.
Attributes
Features
- The TWX1 LED is an energy-efficient, low maintenance LED wall pack for replacing up to a 70 W HPS or 100 W MH fixture, providing the same footprint on the wall
- Two-piece die-cast aluminum housing to optimize thermal management through conductive and convective cooling
- The door is hinged on the side and can be removed for easy installation
- The housing is completely sealed against moisture and environmental contaminants (IP65) and is suitable for the hose-down applications
- Exterior painted parts are protected by a zinc-infused super durable TGIC thermoset powder coat finish that provides superior resistance to corrosion and weathering
- A tightly controlled multi-stage process ensures a 3 mil thickness for a finish that can withstand extreme climate changes without cracking or peeling
- The advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
- The US-made borosilicate glass refractor is specifically designed to maximize light extraction and create a fully luminous luminaire for a better nighttime look
- Light engine consists of high-efficacy LEDs mounted to housing to maximize heat dissipation and promote long-life (up to L81/100000 hr at 25 deg C)
- The electronic driver has a power factor of >90%, THD <20%
- Designed for wall mounting above 4 ft from the ground
- Housing is configured for mounting directly over a standard junction box (by others) or for surface wiring via the 1/2 in threaded conduit entry on the top
