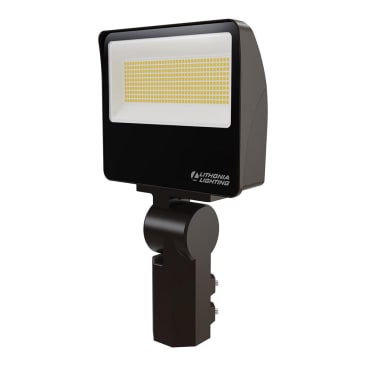

ACUITY ESXF3 ALO SWW2 YS DDB Image 5

ACUITY 276ALW ESXF3 ALO SWW2 YS DDB

MFR Part #: ESXF3 ALO SWW2 YS DDB
SKU #: 1245397
Brand: Acuity Brands®
UPC: 196182393266
Lithonia Lighting® Contractor Select™ ESXF3 Series ESXF3 ALO SWW2 YS DDB Flood Light, 120/277 V, 53 W, 69 W, 100 W
5 Year Limited
This product may be subject to ecological fees.
Yoke and SlipFitter Mount
CSA Certified | DLC Listed | Wet Location Listed

Lithonia Lighting® Contractor Select™ Flood Light, Series: ESXF3 Series, 120/277 V, 53 W, 69 W, 100 W Wattage, Rectangular Shape, LED Lamp, 8500 Lumens, 10500 Lumens, 14000 Lumens, 80 CRI, 3000 K, 4000 K, 5000 K, Switchable Fixture, Flood Beam, IP66 Enclosure, Dimmable, >90 % Power Factor, 6 kV Surge Protection Voltage, Tenon Slipfitter, Yoke Mounting, Aluminum, Bronze, -40 deg C

The Lithonia Lighting® ESXF LED floodlight is a general purpose flood that offers a wide selection of options and flexibility. The ESXF is an all-in-one flood that gives ultimate versatility by offering 36 configurations in one product while delivering on superior illumination and offers easy access to controls for color switching, lumen switching and selectable photocell. ESXF comes with the two most common mountings already included in the box, making on the spot reconfiguring quick and easy. No more go backs! The ESXF family has four sizes with lumen packages ranging from 1500 to 20000 Lumens and are designed to replace 150 to 500 W quartz or 75 to 400 W HID floodlights. Suitable for both professionals and DIYers, these floodlights offer a wide flood distribution (7 x 7) and DLC Premium performance, making it a one stop-shop for all floodlighting needs.

Product Details

Lithonia Lighting® Contractor Select™ Flood Light, Series: ESXF3 Series, 120/277 V, 53 W, 69 W, 100 W Wattage, Rectangular Shape, LED Lamp, 8500 Lumens, 10500 Lumens, 14000 Lumens, 80 CRI, 3000 K, 4000 K, 5000 K, Switchable Fixture, Flood Beam, IP66 Enclosure, Dimmable, >90 % Power Factor, 6 kV Surge Protection Voltage, Tenon Slipfitter, Yoke Mounting, Aluminum, Bronze, -40 deg C

The Lithonia Lighting® ESXF LED floodlight is a general purpose flood that offers a wide selection of options and flexibility. The ESXF is an all-in-one flood that gives ultimate versatility by offering 36 configurations in one product while delivering on superior illumination and offers easy access to controls for color switching, lumen switching and selectable photocell. ESXF comes with the two most common mountings already included in the box, making on the spot reconfiguring quick and easy. No more go backs! The ESXF family has four sizes with lumen packages ranging from 1500 to 20000 Lumens and are designed to replace 150 to 500 W quartz or 75 to 400 W HID floodlights. Suitable for both professionals and DIYers, these floodlights offer a wide flood distribution (7 x 7) and DLC Premium performance, making it a one stop-shop for all floodlighting needs.

Attributes

Color Temperature3000 K, 4000 K, 5000 K
Country Of OriginChina
Lumens8500 Lumens, 10500 Lumens, 14000 Lumens
Mounting TypeTenon Slipfitter, Yoke
SeriesESXF3 Series
Voltage Rating120/277 V
Beam TypeFlood
ColorBronze
Dimmable/Non-DimmableDimmable
Fixture TypeSwitchable
MaterialAluminum
Power Factor>90 %
ShapeRectangular
Surge Protection Voltage6 kV
Temperature Rating-40 deg C
Wattage53 W, 69 W, 100 W
