LITHONIA TWR1 LED ALO SWW2 UVOLT PE DDBTXD Image 1

LITHONIA 280GWW TWR1 ALO SWW2 UVOLT PE DDBTXD ADJ LED WALPCK

MFR Part #: TWR1 LED ALO SWW2 UVOLT PE DDBTXD
SKU #: 1258789
Brand: Acuity Brands | Lithonia Lighting®
UPC: 196183389947

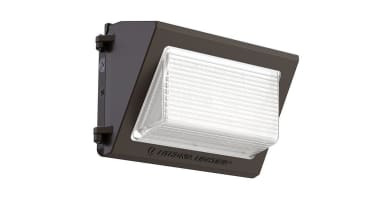

Lithonia Lighting® TWR1 LED ALO SWW2 UVOLT PE DDBTXD TWR Wallpack, Static LED Lamp, 59 W Fixture, 120 to 277 V, Dark Bronze Housing
2 Years
This product may be subject to ecological fees.
Education, Hospitality, Offices & Banks
cULus Listed | UL Listed

Lithonia Lighting®, TWR1 LED ALO SWW2 UVOLT PE DDBTXD, Wallpack, Series: TWR, 120 to 277 V, 59 W Fixture, Static LED Lamp, 50000 hr Average Life, 3000. 4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Glass Lens, 8500 Lumens, Wall Mounting, Aluminum Housing Material, Dark Bronze Housing Finish, 12 in H x 7.5 in W x 5 in L Dimensions

Lithonia Lighting’s Wall Pack is a durable choice for mounting above entryways and at loading docks. The rugged construction of this unit is corrosion-resistant die-cast aluminum. To keep contaminants outside, the wall pack has a one-piece sealed gasket.

Product Details

Lithonia Lighting®, TWR1 LED ALO SWW2 UVOLT PE DDBTXD, Wallpack, Series: TWR, 120 to 277 V, 59 W Fixture, Static LED Lamp, 50000 hr Average Life, 3000. 4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Glass Lens, 8500 Lumens, Wall Mounting, Aluminum Housing Material, Dark Bronze Housing Finish, 12 in H x 7.5 in W x 5 in L Dimensions

Lithonia Lighting’s Wall Pack is a durable choice for mounting above entryways and at loading docks. The rugged construction of this unit is corrosion-resistant die-cast aluminum. To keep contaminants outside, the wall pack has a one-piece sealed gasket.

Attributes

Average Life: 50000 hr
Ballast Type: 0 to 10 V Dimmable
Color Rendering Index (CRI): 80
Color Temperature: 3000. 4000/5000 K, 3000 K, 4000 K, 5000 K
Country Of Origin: Taiwan
Dimensions: 12 in H x 7.5 in W x 5 in L
Dimmable/Non-Dimmable: Dimmable
Fixture Wattage: 59 W, 16 W, 36 W, 59 W
Housing Finish: Dark Bronze
Housing Material: Aluminum
Lamp Type: LED, Static LED
Lens Type: Borosilicate Glass, Glass
Light Color: Cool Light, Daylight, Warm Light
Lumens: 8500 Lumens, 2300 Lumens, 5300 Lumens, 8500 Lumens
Mounting Type: Wall
Series: TWR, TWR1 Series
Voltage Rating: 120 to 277 V, 120/347 V

Features

  • The TWR1 LED wall pack offers a classic appearance with a traditional shape and is loaded with modern features including three adjustable light outputs (ALO), three switchable color temperatures (SWW) 30/40/50K CCT and a switchable dusk-to-dawn photocell
  • TWR1 provides ultimate versatility with 18 configurations in one SKU, making on-the-spot reconfiguring quick and easy
  • ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life with energy savings of up to 86 Percent when replacing HID wall packs
  • VOLTAGE - UVOLT for 120-347V (50/60Hz)
  • HOURS OF LIFE - LEDs maintain 90 Percent of light output at 100,000 hr of service or L90/100,000 hr
  • Housing is configured for mounting directly over a standard 4 in outlet box (by others) or for surface wiring via any of four convenient 1/2 in threaded conduit entry hubs
  • BATTERY BACKUP - Not available
  • ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life with energy savings of up to 86 Percent when replacing HID wall packs

Resources

Catalog
Instruction/Installation Manual
Specification Sheet
