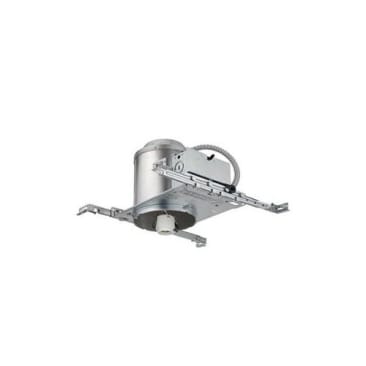

LITHONIA 122H7E 6 AIR-TIGHT IC/NON-IC HSG RESALE L7X R6

MFR Part #: L7X R6
SKU #: 1224639
Brand: Acuity Brands | Lithonia Lighting®
UPC: 784231091906
Lithonia Lighting® L7X R6 L7X Airtight Contractor Select Downlight Housing, Incandescent Lamp, IC/Non-IC Insulation, 120 V AC, 7 in Ceiling Opening, Steel Housing
1 Year
Hospitality, Residential and Retail Applications
cUL Listed

Lithonia Lighting®, L7X R6, Downlight Housing, Airtight Contractor Select, Series: L7X, 120 V AC, 7 in Ceiling Opening, Incandescent Lamp, 1 Lamps, IC/Non-IC Insulation, Ceiling Mounting, For Use With: 7O2 PF/7O2A Open Narrow Flange/7B2 TOR/7B2 TRMW TOR Baffle Narrow Flange/7RE1 Regressed Eyeball Wide Flange, 6 in Diameter, 8-3/4 in Height, 23 in Width, Steel Housing Material

Recessed incandescent housings for 2x8 new construction. Approved for direct burial in insulation and all ceiling and wiring types.

Product Details

Lithonia Lighting®, L7X R6, Downlight Housing, Airtight Contractor Select, Series: L7X, 120 V AC, 7 in Ceiling Opening, Incandescent Lamp, 1 Lamps, IC/Non-IC Insulation, Ceiling Mounting, For Use With: 7O2 PF/7O2A Open Narrow Flange/7B2 TOR/7B2 TRMW TOR Baffle Narrow Flange/7RE1 Regressed Eyeball Wide Flange, 6 in Diameter, 8-3/4 in Height, 23 in Width, Steel Housing Material

Recessed incandescent housings for 2x8 new construction. Approved for direct burial in insulation and all ceiling and wiring types.

Attributes

Country Of Origin: Mexico
Diameter: 6 in
Insulation Type: IC/Non-IC
Ceiling Opening: 7 in
Height: 8-3/4 in
Housing Material: Steel
Lamp Type: Incandescent
Mounting Type: Ceiling
Number of Lamps: 1
Series: L7X
Suitable For Use With: 7O2 PF/7O2A Open Narrow Flange/7B2 TOR/7B2 TRMW TOR Baffle Narrow Flange/7RE1 Regressed Eyeball Wide Flange
Type: Airtight Contractor Select
Voltage Rating: 120 V AC
Width: 23 in

Features

  • Recessed incandescent housings for 2x8 new construction
  • Approved for direct burial in insulation and all ceiling and wiring types
  • Air-tight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX clamps and ground wire
  • Rated for 90 deg C
  • 120 V only
  • Aluminum housing with three remodel clips for installation in existing plaster, sheet rock or mechanical ceilings
