WATTS 0009864 Image 1

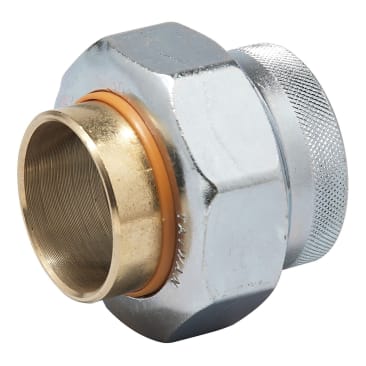

WATTS 0009864 LF3001A 1/2 DIELECTRIC UNION WITH BUNA-N GASKET

MFR Part #: 0009864
SKU #: 1107448
Brand: WATTS®
UPC: 098268430196
WATTS® 0009864 Dielectric Union, 1/2 in Nominal, FNPT x Solder End Style, Brass, Domestic
1 year Limited
Hot Water Storage Tanks, Water and Air Conditioners, Processing Tanks, Steam, Gas and Water Piping
ARRA 2009 | BAA 1933 | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.

WATTS® Dielectric Union, 1/2 in Nominal, FNPT x Solder, 1-1/2 in Hex, 1-7/8 in Length, 250 psi, Brass, 180 deg F, Domestic

This 1/2 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to solder connection, union nut, two tailpieces, and a Buna-N gasket. The gasket separates the tailpieces to prevent an electric current from occurring.

Product Details

WATTS® Dielectric Union, 1/2 in Nominal, FNPT x Solder, 1-1/2 in Hex, 1-7/8 in Length, 250 psi, Brass, 180 deg F, Domestic

This 1/2 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to solder connection, union nut, two tailpieces, and a Buna-N gasket. The gasket separates the tailpieces to prevent an electric current from occurring.

Attributes

Country Of Origin: US
Domestic/Import: Domestic
End Style: FNPT x Solder
Hex Size: 1-1/2 in
Length: 1-7/8 in
Material: Brass
Nominal Size: 1/2 in
Pressure Rating: 250 psi
Series: LF3001A
Temperature Rating: 180 deg F

Features

  • Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover
  • Designed and manufactured to the highest quality standards
  • Steel adapter and nut
  • Polysulfone insulator
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
  • Maximum pressure is 250 psi (17.2 bar)
  • Maximum temperature 180 deg F (82 deg C)
  • FIP thread to solder connections
