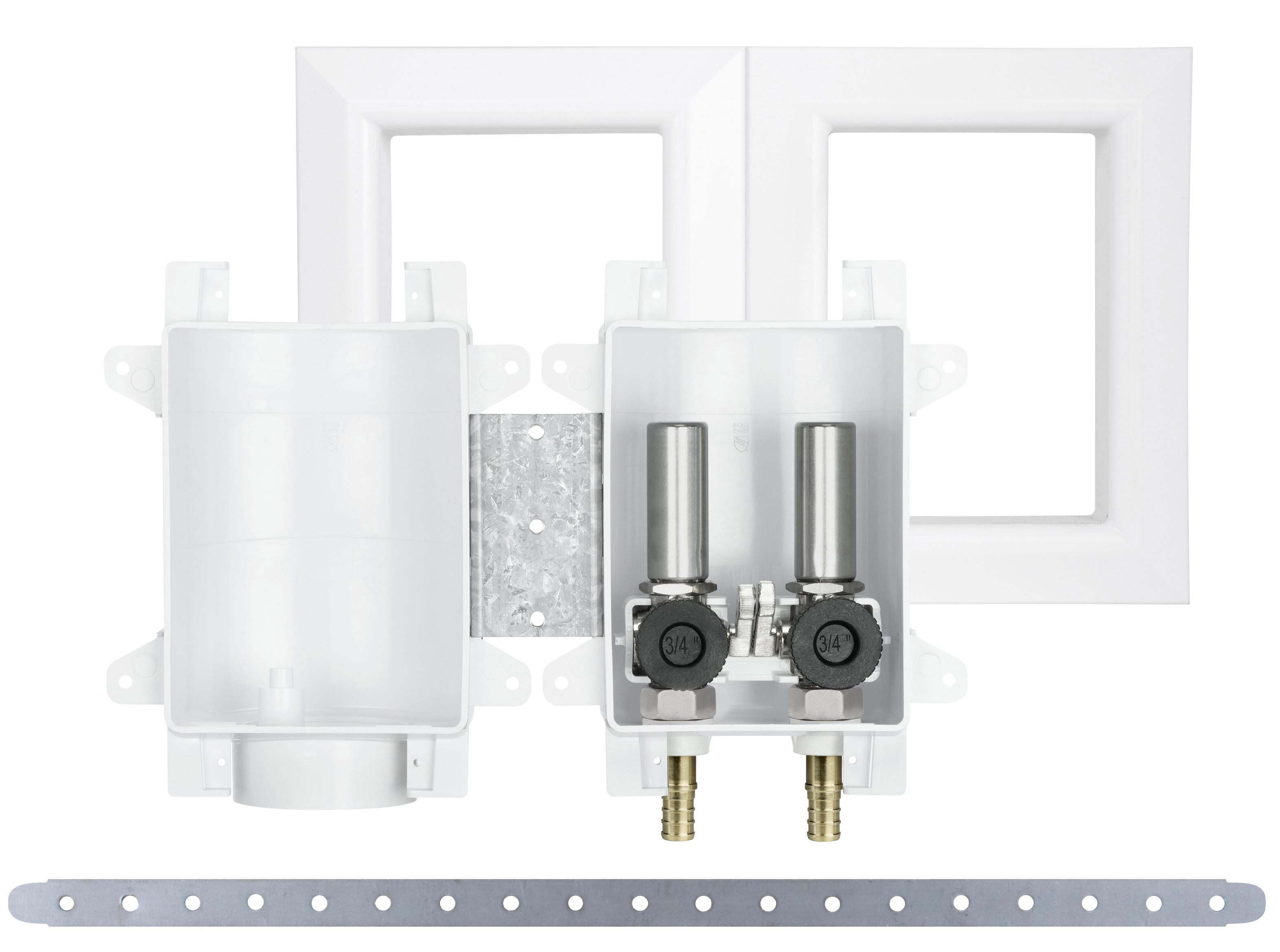

SIOUX CHIEF 696-G2313XF OXBOX PEX LF WASHING MACHINE BOX WITH WATER HAMMER ARRESTOR
Product Details
Attributes
Features
Resources
Sioux Chief OxBox™ Washing Machine Outlet Box, Series: 696, 1/2 in Inlet, 3/4 in Outlet, PEX F1807 Inlet, Double Hose Bibb Outlet, 250 psi Pressure, 250 deg F, ABS, 7-1/4 in H x 11-1/2 in W, Domestic
Sioux chief 696 series Ox Box double hose bibb outlet connection outlet box with drain box shall be used where necessary in plumbing supply or drainage systems. Unit shall allow for mounting with supply lines from top or bottom, on stud or between studs. Unit shall be available with plain valves or valves with water hammer arresters. Arresters shall be certified to ASSE 1010 and shall be UPC listed. Metal support bracket shall install into top tracks of boxes for between stud configuration. Metal clip shall be installed on side slots of box in desired configuration. Drain box shall have a 5/8 in integral testable nipple on knockout. Outlet connections shall be generally 3/4 in.
- Patent no 7,360,553 & no 7,735,511
- Boxes mount securely to stub or over studs
- Separate supply and drainage system into two stub bays
- Separate boxes offer flexible layout
- Durable ABS stands up to job site abuse
- Drain knockout is easy to remove with plier
- Debris cover included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valve
- MiniRester™ water hammer arrester
- Standard pack (supply box, frame, bracket, debris cover)
Product Details
Sioux Chief OxBox™ Washing Machine Outlet Box, Series: 696, 1/2 in Inlet, 3/4 in Outlet, PEX F1807 Inlet, Double Hose Bibb Outlet, 250 psi Pressure, 250 deg F, ABS, 7-1/4 in H x 11-1/2 in W, Domestic
Sioux chief 696 series Ox Box double hose bibb outlet connection outlet box with drain box shall be used where necessary in plumbing supply or drainage systems. Unit shall allow for mounting with supply lines from top or bottom, on stud or between studs. Unit shall be available with plain valves or valves with water hammer arresters. Arresters shall be certified to ASSE 1010 and shall be UPC listed. Metal support bracket shall install into top tracks of boxes for between stud configuration. Metal clip shall be installed on side slots of box in desired configuration. Drain box shall have a 5/8 in integral testable nipple on knockout. Outlet connections shall be generally 3/4 in.
Attributes
Features
- Patent no 7,360,553 & no 7,735,511
- Boxes mount securely to stub or over studs
- Separate supply and drainage system into two stub bays
- Separate boxes offer flexible layout
- Durable ABS stands up to job site abuse
- Drain knockout is easy to remove with plier
- Debris cover included to protect boxes from drywall mud and paint
- High quality quarter-turn ball valve
- MiniRester™ water hammer arrester
- Standard pack (supply box, frame, bracket, debris cover)
