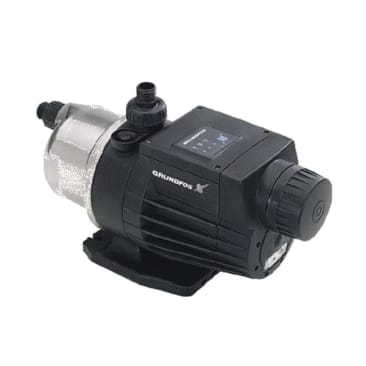

3/4HP 115V BOOSTER PUMP (96515512) 96860172 GRUNDFOS MQ3-35
MFR Part #: MQ 3-35
SKU #: 1025227
Brand: Grundfos
UPC: 5700312084198
Please note this item is discontinued (order fulfillment will depend on stock availability): Grundfos MQ 3-35 Pressure Boosting Pump, 220 to 240 VAC, 1 ph
Private Homes, Summer Houses, Weekend Cottages on Farms and in Market Gardens and Other Large Garden
CE Certified
Product Details
Attributes
Features
Grundfos Pressure Boosting Pump, Series: MQ Series, 220 to 240 VAC, 50 Hz, 1 ph, 0 to 45 deg C
Clearance Items:
Clearance
Voltage Rating:
220 to 240 VAC
Frequency Rating:
50 Hz
Phase:
1
Series:
MQ Series
Temperature Rating:
0 to 45 deg C
- Complete system - The MQ is a complete, all-in-one unit, incorporating pump, motor, diaphragm tank, pressure and flow sensor, controller and non-return valve
- Installation: Due to its compact design, the pump does not take up much space and is easy to install
- Simple operation: the pump features a user-friendly control panel with on/off button and indicator lights for indication of the operational state of the pump
- Self-Priming Pump: As it is self-priming, the MQ is able to pump water from a level below the pump, provided it is filled with water, the pump is able to lift water from a depth of 8 m in less than 5 min
- Built-in protective functions-if exposed to dry running or excessive temperature, for example in case of seizure or overload, the pump will stop automatically, thus preventing a motor burnout
- Automatic Reset: Pump features an automatic reset function, in case of dry running or similar alarm, the pump will stop
- Low Noise Level: Thanks to its hydraulic design and internal cooling, the pump is extremely low-noise, which makes it suitable for both indoor and outdoor use
- Pressure Tank: The built-in pressure tank reduces the number of starts and stops in case of leakages in the pipe system, causing less wear on the pump
- Maintenance: No maintenance of the pump is required
- 2 stage
Product Details
Grundfos Pressure Boosting Pump, Series: MQ Series, 220 to 240 VAC, 50 Hz, 1 ph, 0 to 45 deg C
Attributes
Clearance Items: Clearance
Voltage Rating: 220 to 240 VAC
Frequency Rating: 50 Hz
Phase: 1
Series: MQ Series
Temperature Rating: 0 to 45 deg C
Features
- Complete system - The MQ is a complete, all-in-one unit, incorporating pump, motor, diaphragm tank, pressure and flow sensor, controller and non-return valve
- Installation: Due to its compact design, the pump does not take up much space and is easy to install
- Simple operation: the pump features a user-friendly control panel with on/off button and indicator lights for indication of the operational state of the pump
- Self-Priming Pump: As it is self-priming, the MQ is able to pump water from a level below the pump, provided it is filled with water, the pump is able to lift water from a depth of 8 m in less than 5 min
- Built-in protective functions-if exposed to dry running or excessive temperature, for example in case of seizure or overload, the pump will stop automatically, thus preventing a motor burnout
- Automatic Reset: Pump features an automatic reset function, in case of dry running or similar alarm, the pump will stop
- Low Noise Level: Thanks to its hydraulic design and internal cooling, the pump is extremely low-noise, which makes it suitable for both indoor and outdoor use
- Pressure Tank: The built-in pressure tank reduces the number of starts and stops in case of leakages in the pipe system, causing less wear on the pump
- Maintenance: No maintenance of the pump is required
- 2 stage
