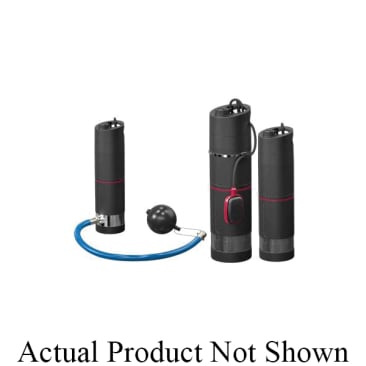

GRUNDFOS 97896333 Image 1

GRUNDFOS 97896333 SBA-3-45-A SUBMERSIBLE PUMP 45FT 120V

MFR Part #: 97896333
SKU #: 1238721
Brand: Grundfos
UPC: 5710626001989
Please note this item is discontinued (order fulfillment will depend on stock availability): Grundfos 97896333 SBA Submersible Booster Pump, 12.9 gpm Flow Rate, 1 in NPT Outlet, 110 to 120 VAC, 1 ph
2 Years
84Z03093 Motor

Grundfos Submersible Booster Pump, Series: SBA, 12.9 gpm, 1 in NPT Outlet, 1.301 hp, 110 to 120 VAC, 9.9 A, 60 Hz, 1 ph, 3400 rpm Motor, (3) PPO20GF Closed Impeller, 122 deg F Ambient, IP68, PP30GF Polypropylene

The SBA clean water submersible pump is designed for use in domestic applications and especially suitable for rainwater applications and wells. When installed underground in a collection tank or well, noise is not an issue. The complete all-in-one plug and pump unit comes with an integrated control unit, eliminating the need for an external pump controller. Once installed and connected, all you need to do is switch on the pump.

Product Details

Grundfos Submersible Booster Pump, Series: SBA, 12.9 gpm, 1 in NPT Outlet, 1.301 hp, 110 to 120 VAC, 9.9 A, 60 Hz, 1 ph, 3400 rpm Motor, (3) PPO20GF Closed Impeller, 122 deg F Ambient, IP68, PP30GF Polypropylene

The SBA clean water submersible pump is designed for use in domestic applications and especially suitable for rainwater applications and wells. When installed underground in a collection tank or well, noise is not an issue. The complete all-in-one plug and pump unit comes with an integrated control unit, eliminating the need for an external pump controller. Once installed and connected, all you need to do is switch on the pump.

Attributes

Clearance ItemsClearance
Flow Rate12.9 gpm
Outlet Size1 in NPT
Voltage Rating110 to 120 VAC
Amperage Rating9.9 A
Enclosure TypeIP68
Frequency Rating60 Hz
Impeller Type(3) PPO20GF Closed
MaterialPP30GF Polypropylene
Motor Speed3400 rpm
Phase1
Power Rating1.301 hp
SeriesSBA
Temperature Rating122 deg F Ambient

Features

  • Noiseless operation
  • High reliability
  • Integrated protection
  • Integrated suction strainer with float switch pump version
