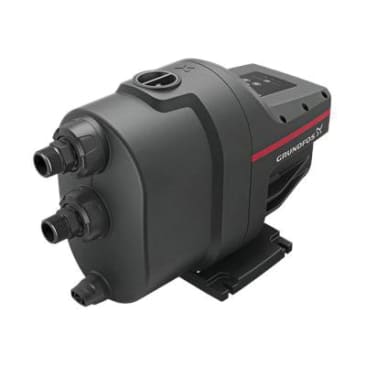

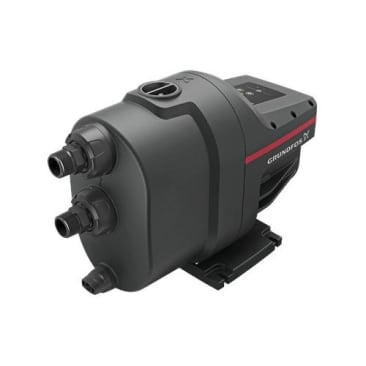

GRUNDFOS 99631754 SCALA1 5-55 CSA 1 X 115 V 60 HZ
Product Details
Attributes
Features
Grundfos, 99631754, Water Booster Pump, 38 gpm Flow Rate, 1 in NPT Inlet, 1 in NPT Outlet, 180.46 ft Maximum Head, 1.1 hp Power, 115 V, 11.57 A, 60 Hz Frequency, 1 ph, 25 psi Maximum, 3450 rpm Motor, Composite Impeller, 32 to 113 deg F, NEMA 5-15P Enclosure
The SCALA1 water pressure booster pump ensures a steady flow and constant water supply in the home. This all-in-one solution includes a sensor, controller, and check valve built into the pump. Powered by a high efficiency permanent magnet motor, the SCALA1 delivers top-notch performance while reducing energy consumption. It also allows for external inputs, accommodating various applications such as float switches for tank filling, inlet pressure switches, and moisture detection switches for irrigation.
- High-efficiency booster pump with a permanent magnet motor (ECM) that helps reduce energy consumption
- Built in sensor to constantly measure and optimize for drops in pressure
- Dry run protection monitoring to automatically stop the pump in case of water shortage
- All-in-one solution, sensor, controller, check valve built into the pump
- Compact size allows for installations in a variety of spaces (small or large)
- Water flowing through the pump cools the motor to help it operating
- Self-priming pump ensures stable operation, even when the pump is not completely filled with water
- Aluminum construction combined with corrosion-resistant internal components
Product Details
Grundfos, 99631754, Water Booster Pump, 38 gpm Flow Rate, 1 in NPT Inlet, 1 in NPT Outlet, 180.46 ft Maximum Head, 1.1 hp Power, 115 V, 11.57 A, 60 Hz Frequency, 1 ph, 25 psi Maximum, 3450 rpm Motor, Composite Impeller, 32 to 113 deg F, NEMA 5-15P Enclosure
The SCALA1 water pressure booster pump ensures a steady flow and constant water supply in the home. This all-in-one solution includes a sensor, controller, and check valve built into the pump. Powered by a high efficiency permanent magnet motor, the SCALA1 delivers top-notch performance while reducing energy consumption. It also allows for external inputs, accommodating various applications such as float switches for tank filling, inlet pressure switches, and moisture detection switches for irrigation.
Attributes
Features
- High-efficiency booster pump with a permanent magnet motor (ECM) that helps reduce energy consumption
- Built in sensor to constantly measure and optimize for drops in pressure
- Dry run protection monitoring to automatically stop the pump in case of water shortage
- All-in-one solution, sensor, controller, check valve built into the pump
- Compact size allows for installations in a variety of spaces (small or large)
- Water flowing through the pump cools the motor to help it operating
- Self-priming pump ensures stable operation, even when the pump is not completely filled with water
- Aluminum construction combined with corrosion-resistant internal components
