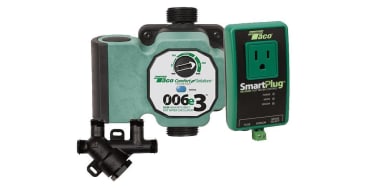

TACO HLPE-1 CIRCULATOR SMART PLUG CONTROL & HOTLINK WITH VALVE-FITTINGS
MFR Part #: HLPe-1
SKU #: 1218328
Brand: Taco® Comfort Solutions™
UPC: 687752469783
Taco® HLPe-1 HLPE High Efficiency ECM Domestic Hot Water Recirculation, 11 gpm Flow Rate, 1/2 in Inlet, 120 V, 1
Taco Circulator
For Hot Water Recirculation Systems, Water/Glycol concentrations up to 50% in Closed Hydronic Systems, Open Loop Potable Water Systems and Closed Hydronic Systems
NSF Certified
Product Details
Attributes
Features
Resources
Taco®, HLPe-1, ECM Domestic Hot Water Recirculation, High Efficiency, Series: HLPE, 11 gpm Flow Rate, 1/2 in Inlet, 13 ft Maximum Head, 44 W Power, 120 V, 0.52 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Noryl® Impeller, 36 to 203 deg F, 8.5 in H x 2.5 in W Dimensions
Country Of Origin:
US
Flow Rate:
11 gpm
Maximum Head:
13 ft
Voltage Rating:
120 V
Amperage Rating:
.52 A
Dimensions:
8.5 in H x 2.5 in W
Frequency Rating:
60 Hz
Impeller Type:
Noryl®
Inlet Size:
1/2 in
Maximum Pressure:
150 psi
Motor Speed:
3250 rpm
Phase:
1
Power Rating:
44 W
Series:
HLPE
Temperature Rating:
36 to 203 deg F
Type:
High Efficiency
- SureStart®, a Taco exclusive feature, is your no-callback safety net It automatically purges air and unblocks the pump to keep it trouble-free
- Pulse Mode cycles the circulator on and off maintaining hot water at all fixtures at all times
- Exercise Function periodically cycles the circulator while in Vacation Mode to prevent any corrosion or scale build up
- Whisper quiet operation
- High-efficiency ECM motor uses up to 85% less electricity
- Vacation Mode turns the circulator off after 36 hours of no use until hot water is needed again
- Easy installation: - Compact design for tight spaces
- Ideal for retrofits
- Instant hot water for existing plumbing systems; no dedicated return line needed
- Smart Mode learns household hot water usage patterns, running the circulator only when hot water is needed
- Easy installation - no wiring, no programming, no timer, no Aquastat
- Double Insulated No ground necessary
- Easy to use dial: - Low, Medium, High - 003 & 006 performance point references
- Trouble-free performance reinforced by SureStart automatic unblocking and air purging
Product Details
Taco®, HLPe-1, ECM Domestic Hot Water Recirculation, High Efficiency, Series: HLPE, 11 gpm Flow Rate, 1/2 in Inlet, 13 ft Maximum Head, 44 W Power, 120 V, 0.52 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Noryl® Impeller, 36 to 203 deg F, 8.5 in H x 2.5 in W Dimensions
Attributes
Country Of Origin: US
Flow Rate: 11 gpm
Maximum Head: 13 ft
Voltage Rating: 120 V
Amperage Rating: .52 A
Dimensions: 8.5 in H x 2.5 in W
Frequency Rating: 60 Hz
Impeller Type: Noryl®
Inlet Size: 1/2 in
Maximum Pressure: 150 psi
Motor Speed: 3250 rpm
Phase: 1
Power Rating: 44 W
Series: HLPE
Temperature Rating: 36 to 203 deg F
Type: High Efficiency
Features
- SureStart®, a Taco exclusive feature, is your no-callback safety net It automatically purges air and unblocks the pump to keep it trouble-free
- Pulse Mode cycles the circulator on and off maintaining hot water at all fixtures at all times
- Exercise Function periodically cycles the circulator while in Vacation Mode to prevent any corrosion or scale build up
- Whisper quiet operation
- High-efficiency ECM motor uses up to 85% less electricity
- Vacation Mode turns the circulator off after 36 hours of no use until hot water is needed again
- Easy installation: - Compact design for tight spaces
- Ideal for retrofits
- Instant hot water for existing plumbing systems; no dedicated return line needed
- Smart Mode learns household hot water usage patterns, running the circulator only when hot water is needed
- Easy installation - no wiring, no programming, no timer, no Aquastat
- Double Insulated No ground necessary
- Easy to use dial: - Low, Medium, High - 003 & 006 performance point references
- Trouble-free performance reinforced by SureStart automatic unblocking and air purging
