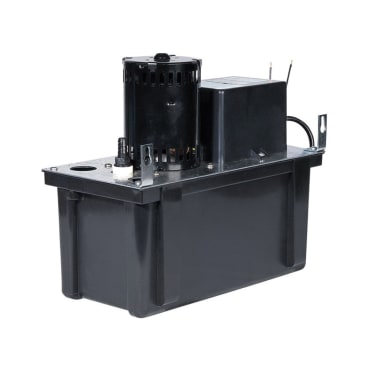

LITTLE GIANT 553206 Image 1

LITTLE GIANT 553206 VCL-24UL

MFR Part #: 553206
SKU #: 1153845
Brand: Little Giant®
UPC: 010121532069
Please note this item is discontinued (order fulfillment will depend on stock availability): Little Giant® 553206 VCL Automatic Condensate Removal Pump, 270 gph Flow Rate, 1-1/8 in Inlet x 3/8 in OD Barbed Outlet, 24 ft Shutoff Head, 148 W Power Rating
For removal of condensate from air conditioners, high efficiency gas furnace condensation and condensing boilers
cCSAus Certified

Little Giant® Condensate Removal Pump, Automatic, Series: VCL, 270 gph, 1-1/8 in Inlet, 3/8 in OD Barbed Outlet, 24 ft Shutoff Head, 148 W, 2.5 A 115 VAC 60 Hz 1/18 hp, 10.4 psi Maximum, 1 gal Reservoir, Polymer Float, 120 deg F, ABS, 12 in L x 6 in W x 10-1/2 in H

Product Details

Little Giant® Condensate Removal Pump, Automatic, Series: VCL, 270 gph, 1-1/8 in Inlet, 3/8 in OD Barbed Outlet, 24 ft Shutoff Head, 148 W, 2.5 A 115 VAC 60 Hz 1/18 hp, 10.4 psi Maximum, 1 gal Reservoir, Polymer Float, 120 deg F, ABS, 12 in L x 6 in W x 10-1/2 in H

Attributes

Clearance Items: Clearance
Country Of Origin: Mexico
Material: ABS
Temperature Rating: 120 deg F
Type: Automatic

Features

  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • 6 ft, 3-conductor cable with grounded 3-prong plug
  • ABS switch housing, pump housing and tank
  • Galvanized steel tank cover
  • Stainless steel motor shaft
  • Polypropylene impeller
  • Acetal discharge adapter
  • Thermally protected, fan cooled motor
  • Model VCL-24UL

Resources

Catalog
Specification Sheet
