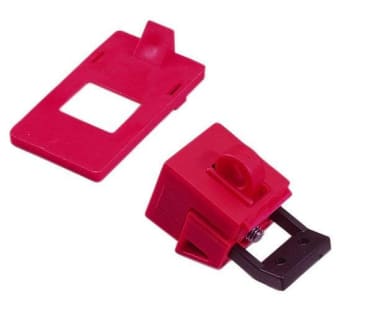

IDEAL 44-809 Image 1

IDEAL 44-809 SINGLE POLE BREAKER LOCKOUT (PKG OF 3)

MFR Part #: 44-809
SKU #: 1032766
Brand: IDEAL®
UPC: 783250448098
IDEAL® 44-809 Universal Circuit Breaker Lockout, For Use With 120/277 V Single Pole Breaker with Trip Lever Up to 1/2 in Width, 0.28 in Dia Max Padlock Shackle, Red
RoHS Compliant

IDEAL® Circuit Breaker Lockout, Universal, For Use With: 120/277 V Single Pole Breaker with Trip Lever Up to 1/2 in Width, 0.28 in Padlock Shackle Maximum Diameter, Red, 1 in Height, 2-1/2 in Width, 4 in Depth

The Universal 120-277V Breaker Lockouts are hinged with locking post design. Breaker lockout locks lever in off position to isolate and to prevent the use of breaker. It features a universal model that has unique screw clamp to lockout all Single-Pole Breakers. The Universal 120-277V Breaker Lockouts use thumbscrew to clamp lockout securely on to switch tongue, then pull cover over thumbscrew and lock in place to prevent clamp from being loosened. The new blade design also provides a tighter grip with less torque on thumbscrew. Breaker lockout meets RoHS standards.

Product Details

IDEAL® Circuit Breaker Lockout, Universal, For Use With: 120/277 V Single Pole Breaker with Trip Lever Up to 1/2 in Width, 0.28 in Padlock Shackle Maximum Diameter, Red, 1 in Height, 2-1/2 in Width, 4 in Depth

The Universal 120-277V Breaker Lockouts are hinged with locking post design. Breaker lockout locks lever in off position to isolate and to prevent the use of breaker. It features a universal model that has unique screw clamp to lockout all Single-Pole Breakers. The Universal 120-277V Breaker Lockouts use thumbscrew to clamp lockout securely on to switch tongue, then pull cover over thumbscrew and lock in place to prevent clamp from being loosened. The new blade design also provides a tighter grip with less torque on thumbscrew. Breaker lockout meets RoHS standards.

Attributes

Color: Red
Country Of Origin: US
Depth: 4 in
Height: 1 in
Padlock Shackle Maximum Diameter: .28 in
Suitable For Use With: 120/277 V Single Pole Breaker with Trip Lever Up to 1/2 in Width
Type: Universal
Width: 2-1/2 in

Features

  • Hinged single-pole lockout with locking post design, locks lever in off position to isolate and prevent breaker use
  • Use thumbscrew to clamp lockout securely on to switch tongue, then pull cover over thumbscrew and lock in place to prevent clamp from being loosened
  • New blade design provides tighter grip with less torque on thumbscrew
  • Universal model features unique screw clamp to lockout all single-pole breakers

Resources

Owners/User Manual
RoHS
