GUARDIAN G1849 DECK MNTD SWING DWN EYE WASH
MFR Part #: G1849
SKU #: 1222591
Brand: Guardian
UPC: 0135361113458

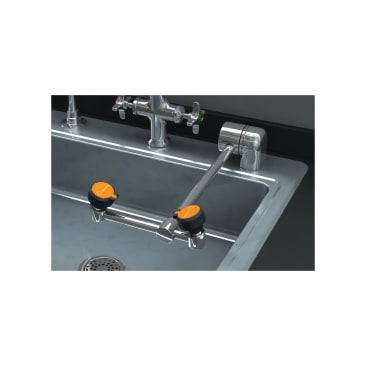

Guardian AutoFlow™ G1849 Eyewash, Deck Mounting, 90 deg Swing Down Operation, Specifications Met: ANSI Z358.1-2014
ANSI Compliant Identification Sign
cUPC 8116
Product Details
Attributes
Features
Resources
Guardian AutoFlow™ Eyewash, 2 Heads, Deck Mounting, 90 deg Swing Down Operation, Chrome Plated Brass Valve, Chrome Plated Brass Fitting, Chrome Plated Brass Pipe, 1/2 in FNPT Inlet Fitting, 1-1/2 in Diameter Head, 15 in Height, Specifications Met: ANSI Z358.1-2014
Country Of Origin:
US
Fitting Material:
Chrome Plated Brass
Fitting Size:
1/2 in FNPT Inlet
Head Diameter:
1-1/2 in
Height:
15 in
Mounting Type:
Deck
Number of Heads:
2
Operation Type:
90 deg Swing Down
Pipe Material:
Chrome Plated Brass
Specifications Met:
ANSI Z358.1-2014
Valve Material:
Chrome Plated Brass
- Two GS-Plus™ spray heads, each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
- 1/2 in IPS plug-type valve with PTFE coated O-ring seals
- Swinging head assembly down from storage to operational position opens orifice and activates water flow
- Unit remains in operation until spray head assembly is returned to storage position
- Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line
- Valve is installed in chrome-plated brass housing
- Unit mounts on countertop behind sink
- Furnished with mounting hardware for securing unit to counter
Product Details
Guardian AutoFlow™ Eyewash, 2 Heads, Deck Mounting, 90 deg Swing Down Operation, Chrome Plated Brass Valve, Chrome Plated Brass Fitting, Chrome Plated Brass Pipe, 1/2 in FNPT Inlet Fitting, 1-1/2 in Diameter Head, 15 in Height, Specifications Met: ANSI Z358.1-2014
Attributes
Country Of Origin: US
Fitting Material: Chrome Plated Brass
Fitting Size: 1/2 in FNPT Inlet
Head Diameter: 1-1/2 in
Height: 15 in
Mounting Type: Deck
Number of Heads: 2
Operation Type: 90 deg Swing Down
Pipe Material: Chrome Plated Brass
Specifications Met: ANSI Z358.1-2014
Valve Material: Chrome Plated Brass
Features
- Two GS-Plus™ spray heads, each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow
- 1/2 in IPS plug-type valve with PTFE coated O-ring seals
- Swinging head assembly down from storage to operational position opens orifice and activates water flow
- Unit remains in operation until spray head assembly is returned to storage position
- Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line
- Valve is installed in chrome-plated brass housing
- Unit mounts on countertop behind sink
- Furnished with mounting hardware for securing unit to counter
