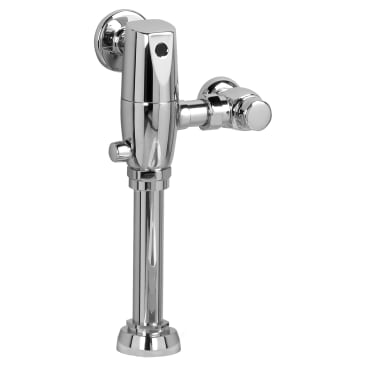

AM STD 606B121.002 SELECTRONIC 1.28GPF WATER CLOSET FV
Product Details
Attributes
Features
Resources
American Standard Flush Valve, Exposed Hands-Free Operated, Selectronic® Collection, Urinal Fixture, Plug-In AC Powered Power Source, 0.125 gpf Flush, 3/4 in NPT Inlet, 3/4 in Spud Coupling, Piston Operated Valve Design, Connection Location: Back Spud, 400 to 800 mm Sensor, 20 psi Flowing/80 psi Static Pressure, Semi-Red Brass Alloy, Rough Brass, Import
The exposed Selectronic® toilet flush valve is now capable of meeting ADA clearance requirements when installed under a grab-bar that is installed at 36 in H from the floor to the top of the bar. The self-cleaning piston design saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs.
- Self-cleaning piston eliminates routine maintenance
- No diaphragms to replace or filter screens to clean
- Integral wiper spring cleans the refill orifice with every flush
- Delivers reliable operation even with poor water quality
- Hygienic, touch-free operation
- Flexible Selectronic® platform with programmable sensor
- Fully mechanical manual override - allows valve to flush during a power failure
- Fail-safe - valve automatically closes on loss of power or water pressure
- Power kit sold separately
- Can be installed left or right hand
- An impressive collection of Selectronic® sensor operated flush valves are designed to meet the demands of high use spaces labor saving installation, water saving operation and time saving maintenance and care
- State-of-the-Art electronics prevent ghost flushing
- Dezincification-resistant semi-red brass alloy
- Adjustable sanitary flush cleans the fixture and maintains the trap seal
- Chemical-resistant EPDM seals for long life
Product Details
American Standard Flush Valve, Exposed Hands-Free Operated, Selectronic® Collection, Urinal Fixture, Plug-In AC Powered Power Source, 0.125 gpf Flush, 3/4 in NPT Inlet, 3/4 in Spud Coupling, Piston Operated Valve Design, Connection Location: Back Spud, 400 to 800 mm Sensor, 20 psi Flowing/80 psi Static Pressure, Semi-Red Brass Alloy, Rough Brass, Import
The exposed Selectronic® toilet flush valve is now capable of meeting ADA clearance requirements when installed under a grab-bar that is installed at 36 in H from the floor to the top of the bar. The self-cleaning piston design saves time and money by eliminating routine maintenance and preventing the valve from running due to clogs.
Attributes
Features
- Self-cleaning piston eliminates routine maintenance
- No diaphragms to replace or filter screens to clean
- Integral wiper spring cleans the refill orifice with every flush
- Delivers reliable operation even with poor water quality
- Hygienic, touch-free operation
- Flexible Selectronic® platform with programmable sensor
- Fully mechanical manual override - allows valve to flush during a power failure
- Fail-safe - valve automatically closes on loss of power or water pressure
- Power kit sold separately
- Can be installed left or right hand
- An impressive collection of Selectronic® sensor operated flush valves are designed to meet the demands of high use spaces labor saving installation, water saving operation and time saving maintenance and care
- State-of-the-Art electronics prevent ghost flushing
- Dezincification-resistant semi-red brass alloy
- Adjustable sanitary flush cleans the fixture and maintains the trap seal
- Chemical-resistant EPDM seals for long life
